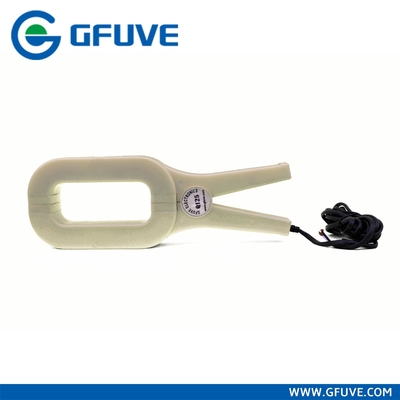

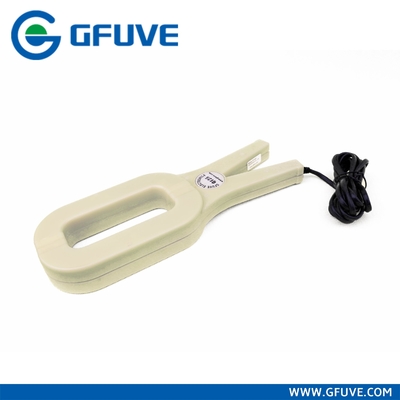

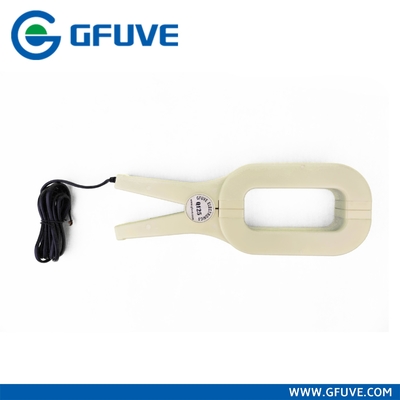

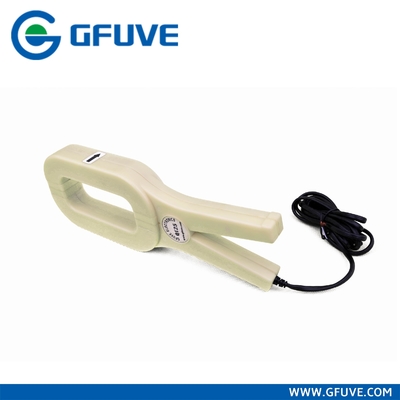

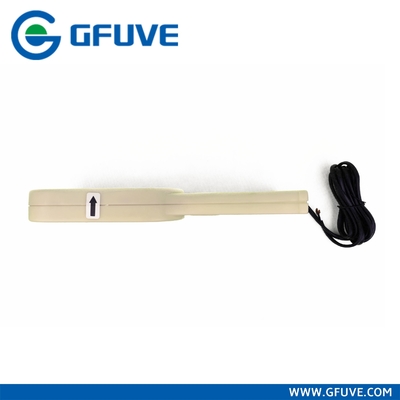

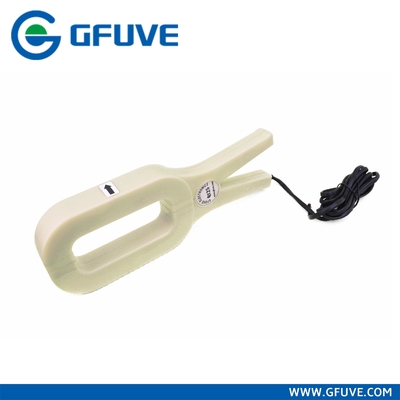

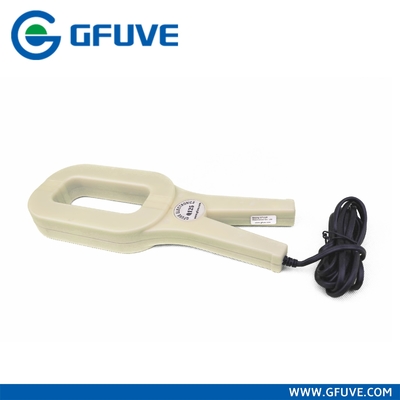

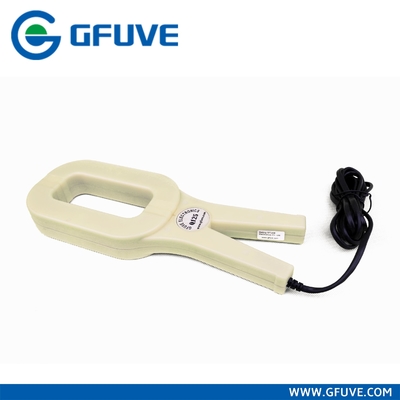

Q125 Square Jaw Opening Handheld Bus Bar Compact High Accuracy Current Clamp On Measuring Instrument
Detailed Product Description
| Ratio: |
1000: 1 Or 2000:1 (customized) |
Accuracy Class: |
0.2%, 0.5%, 1% |
| Primary Current: |
0 - 3000A AC |
Secondary Current: |
0 - 5A AC (customized) |
| Max. Cont. Input Current: |
3600A |
Max. Voltage Not Insulated Conductors: |
600 V |
| Over Voltage Category: |
CAT III 600V |
Output Signal (AC Current): |
500mA,1A,5A AC At Nominal Input Current |
| Dielectric Strength: |
3KV 50Hz/60Hz At 1 Minute |
Frequency Range: |
40Hz-2000Hz |
| Output: |
2.5 Meter Cable With D01 Connector |
Q125 Square Jaw Opening Handheld Bus Bar Compact High Accuracy Current Clamp On Measuring Instrument
The model Q125 current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 3000A AC
2. Small, compact size; holding wire diameter 120mm×50mm
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω; When 1A output, it is 0.1Ω;When 5A output, it is 2.5VA.
6. Output model: Lead output(2.5m)
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.2%, 0.5%, 1% |
| Primary current |
0 - 3000A AC |
| Secondary current |
0 - 5A AC (customized) |
| Max. Cont. Input current |
3600A |
| Over voltage category |
CAT III 600 V |
| Output signal (AC current) |
500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) |
333mV,500mV,1V,5V AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
116 x 327 x 35 |
| Weight (g) |
1200 |
| Holding wire diameter (mm) |
φ120 x 50 |
| Max. jaw opening (mm) |
50 |
| Jaw Color |
White |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
