200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER

China 200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER supplier
200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER supplier 200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER supplier 200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER supplier 200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER supplier

Large Image :  200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: LZCK-55

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: USD100---200/PC
Packaging Details: Standard export box
Delivery Time: 3days
Payment Terms: T/T, Western Union, Paypal, L/C, D/A, D/P
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Usage: Current Phase: Single
Coil Structure: Toroidal Coil Number: Autotransformer
Name: Split Core Current Transformer Color: Orange And Black
Class: 0.5S Cable: 2.5m Cable(standard), 5m, 10m

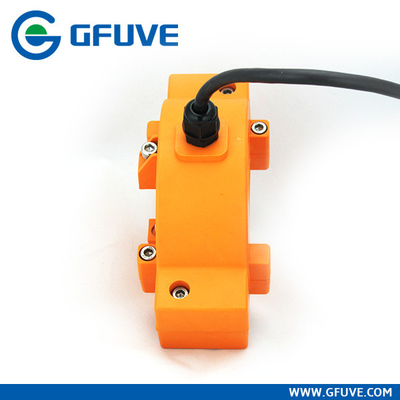

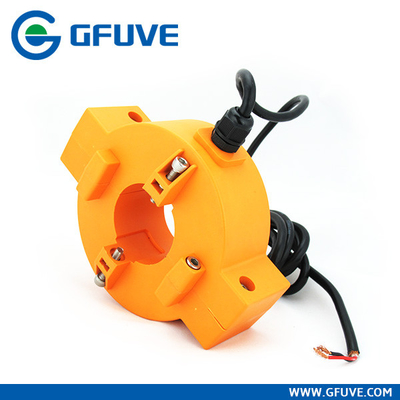

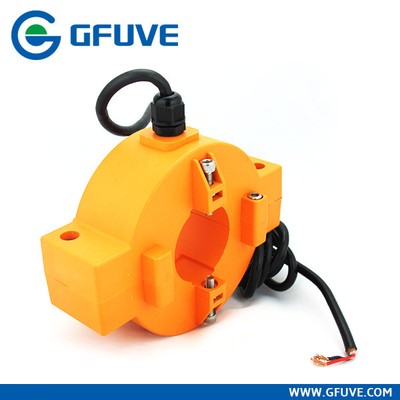

LZCK-55 IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER for ENERGY METER & POWER METER

200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER

Split Core Current Transformers (CTs) are designed for applications where it is difficult or uneconomical to open the primary conductor to install a solid-core-type current transformer. The split-core design uses silicon steel or polysilicon steel alloy formed into a ring type, hexagonal or rectangular shape.



LZCK-55 series IP65 outdoor waterproof current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is flame retardance anti-moisture, stable performance, no maintenance.



The model LZCK-55 Combination Transformer is consisting of high performance split core current transformer and voltage sampling sensor, and its material is made by electrician ABS and epoxy resin. Its ingress protection is designed in IP68. This Transformer is compatible with Distribution Transformer Monitor and provides high quality power parameter quality signal for the monitor to control, measure and monitor the energy quality and so on in grid system. This transformer has features of high accuracy, fire-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc. It equipped outdoor cable assembly in bottom for transmitting the signal to transformer monitor. This transformer applies to the low voltage outdoor electric power system with frequency 50Hz or 60Hz.



APPLICATION

POWER METER

KWH METER

THREE PHASE ENERGY METER

SINGLE PHASE ENERGY METER

POWER MONITOR

DISTRUBITION TRANSFRORMER MONITOR

PARAMETERS

Technical parameters
Standards IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Accuracy Class 0.5S, 0.5%, 1%, 3%
Range of primary rated current 100-1500A
Range of Rated load ≤10VA
Rated frequency 50/60Hz
Rated secondary current 5A or 1A
Secondary winding power frequency withstand voltage 3kV, 1min
Safety Factor Rating (FS) <10
Flame retardant ABS plastic shell inside, jaw waterproof apron.
Mechanical parameters
Aperture (mm) Φ55
Dimensions (W×D×H) (mm) 180×138×52
Weight (kg) 2
Working conditions
Operating temperature -35°C to +55°C, not exceeding +40°C
Environment outdoors or indoors
The Height of above sea level 0- 3000m
Conditions No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

SELECTION GUIDE

 Model Primary rated current Rated load Aperture (mm) Description (mm) Weight (kg) Material Water-proof
LZCK-55 100-1500A ≤10VA φ55 180×138×52 2 PC  IP65
LMCK185-10 300-3000A ≤25VA φ185 350×283×55 4.5 PC  IP65
LZCK310-10 300-600A ≤10VA φ50 φ50 x φ110 x 32 1 Resin silicon case (option)
LZCK322-10 30-600A ≤10VA φ50 φ50 x φ110 x 52 1.6 Resin silicon case (option)
LZCK350-10 20-600A ≤25VA φ50 φ50 x φ110 x 105 3.1 Resin silicon case (option)
LZCG530-10 30-600A ≤20VA φ45 φ45 x φ120 x 65 2.1 Resin silicon case (option)

200/5A IP65 OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER & POWER METER

Contact Details
Beijing GFUVE Electronics Co.,Ltd.

Contact Person: Mr. Andy

Tel: 86-10-85782698

Fax: 86-010-85781298

Send your inquiry directly to us (0 / 3000)
