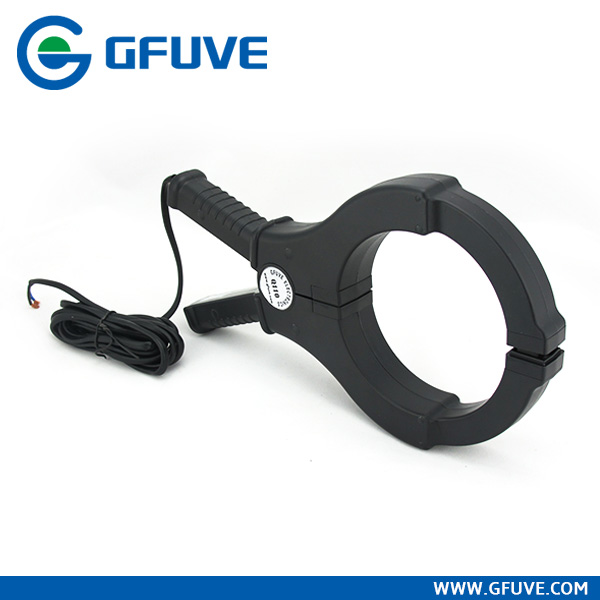

CABLE FAULT AC CLAMP ON CURRENT TRANSFORMER
-
-
Large Image :
CABLE FAULT AC CLAMP ON CURRENT TRANSFORMER
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
Q110 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD1---450 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
5000pcs/month |
|
Detailed Product Description
| Usage: |
Current |
Phase: |
Single |
| Coil Structure: |
Toroidal |
Coil Number: |
Autotransformer |
| Class: |
0.5 |
Standard: |
IEC60044-1,EN 61010-1, EN 61010-2-032 |
Q110 high quality CABLE FAULT AC CLAMP ON CURRENT TRANSFORMER
The model Q110 high quality cable fault ac clamp on current transformer is a high accuracy ct, the advanced design ensures enhanced linearity and the jaw opening system provides enhanced safety.
FEATURES
- This product can be used in large current situation; also can cooperate to cable fault tester and cable identification device, used for cable test work.
- Holding wire diameter: φ110mm
- Dimension: 163mm×310mm×34mm
- Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
- Installation: clamp type
- Output mode: lead output
http://www.gfuve.com/current-probe/square-jaw-opening-magnetic-compact-AC-current-clamp.html
PARAMETERS
| Electrical parameters |
|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Output signal | 500mA,1A,5A AC at nominal input current or 1V, 2V, 5V ac (customized) |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters |
|---|
| Dimensions (L x W x H) (mm) | 163 x 310 x 34 |
| Weight (g) | 900 |
| Holding wire diameter (mm) | φ110 |
| Max. jaw opening (mm) | 110 |
