20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR

China 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier
20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR supplier

Large Image :  20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: ISO9001, CE, UL
Model Number: XQ20

Payment & Shipping Terms:

Minimum Order Quantity: 3PCS
Price: 98USD
Packaging Details: STANDARD EXPORT BOX
Delivery Time: 7DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
CLASS: 0.1 RATIO: 1000:1
PRIMARY CURRENT: 0-240A SECONDARY CURRENT: 0-240mA
COLOR: RED AND GREY MATERIAL: PC
CABLE: 2.5M WEIGHT: 420G
PHASE SHIFT: 30' TYPE: CLAMP ON CURRENT SENSOR

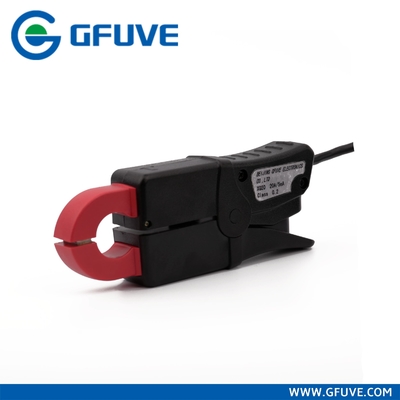

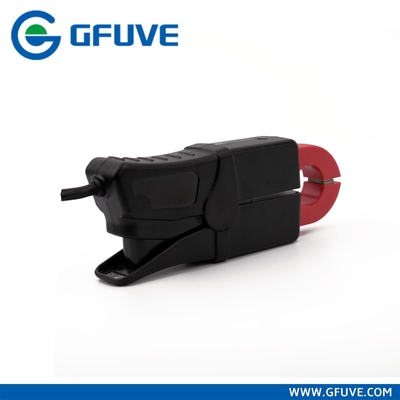

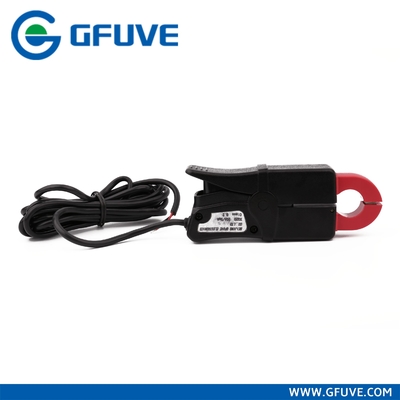

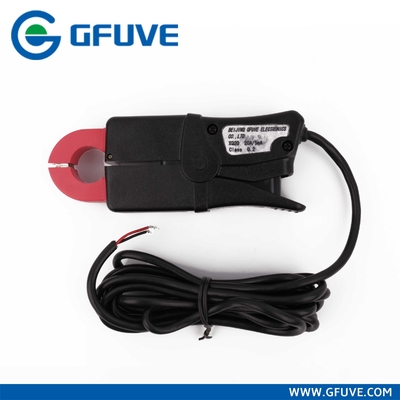

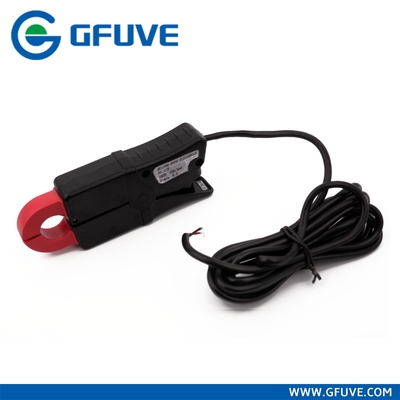

XQ20 20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR

The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.

20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR20mm HIGH PRECISION 0.1 CLASS 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR

FEATURES

  • Suitable for 0A-200A cable online measurement.
  • Holding wire diameter: φ20mm
  • Dimension: 52.5mm×137.5mm×28mm
  • Load capacity: ≤4Ω
  • Installation: clamp type
  • Output mode: lead output
  • Low phase shift 30'
  • Class 0.1


PARAMETERS

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%
Primary current 0 - 200A AC
Secondary current 0 - 200mA AC (customized)
Max. Cont. Input current 240A
Load capacity ≤4Ω
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 200mA AC at nominal input current
Output signal (AC voltage) From 0 to 2V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 52.5 x 137.5 x 28
Weight (g) 400
Holding wire diameter (mm) φ20
Max. jaw opening (mm) 20
Jaw color Red, yellow, blue, green, black
Material PC+ABS+Polycarbonate, UL94 V0
