35KV HIGH VOLTAGE SPLIT CORE CURRENT TRANSFORMER
-
-

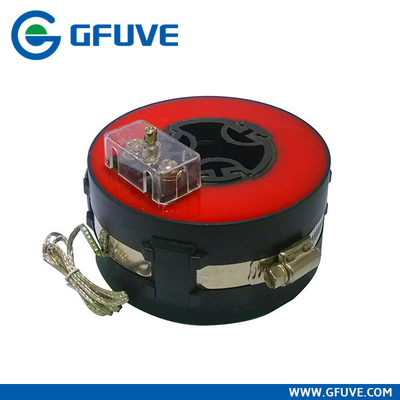

Large Image :
35KV HIGH VOLTAGE SPLIT CORE CURRENT TRANSFORMER
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
LZCK322-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD10---150 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
20000pcs/month |
|
Detailed Product Description
| Usage: |
Current |
Phase: |
Single |
| Coil Structure: |
Toroidal |
Coil Number: |
Autotransformer |

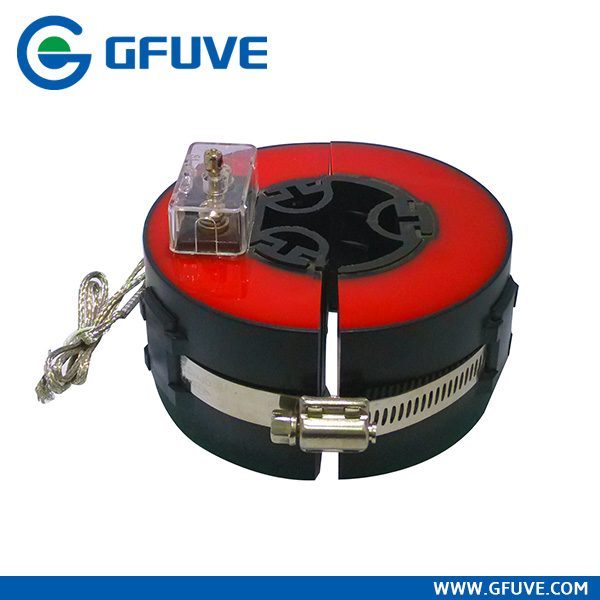

LZCK322-10 11KV 33KV 35KV HIGH VOLTAGE SPLIT CORE CURRENT TRANSFORMER
LZCK series 11KV 33KV 35KV split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
PARAMETERS
|
Technical parameters |
|
Standards |
IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006 |
|
Rated primary current |
30-600A |
|
Rated load |
≤10VA |
|
Rated frequency |
50Hz or 60Hz |
|
Rated secondary current |
5A or 1A |
|
Rated short-time thermal current |
40kA, 1S |
|
Rated continuous thermal current |
120%I1n |
|
Secondary winding power-frequency voltage |
3kV, 1min |
|
Instrument security factor |
FS≤10 |
|
Mechanical parameters |
|
Dimensions (W×D×H) (mm) |
φ50xφ110x52 |
|
Weight (kg) |
1.6 |
|
Operating conditions |
|
Operating temperature |
-35°C to +55°C |
|
Daily average temp |
<+40°C |
|
Altitude |
<3500 meters |
|
Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
TECHNICAL DATA
|
Type |
LZCK322-10 |
LZCK322-10 |
|
Purpose |
Measuring current transformer |
Protection current transformer |
|
Ratio |
Accuracy class and rated load(VA) |
Accuracy class and rated load(VA) |
|
I1/I2 |
0.5 |
1 |
3 |
10P15 |
10P10 |
10P5 |
|
30/1 |
|
1 |
1.5 |
|
|
|
|
50/1 |
|
1 |
2 |
|
|
1.25 |
|
75/1 |
|
1.5 |
2.5 |
|
1 |
2 |
|
100/1 |
2 |
2.5 |
3 |
|
1.5 |
2.5 |
|
200/1 |
2.5 |
|
|
1.25 |
2.5 |
|
|
300/1 |
3.75 |
|
|
1.25 |
2.5 |
|
|
400/1 |
7.5 |
|
|
1.25 |
2.5 |
|
|
500/1 |
10 |
|
|
1.25 |
3 |
|
|
600/1 |
10 |
|
|
1.5 |
3 |
|
|
50/5 |
|
|
2.5 |
|
|
|
|
75/5 |
|
|
2.5 |
|
|
|
|
100/5 |
2.5 |
|
|
|
|
|
|
200/5 |
3.75 |
|
|
|
|
|
|
300/5 |
5 |
|
|
|
|
|
|
400/5 |
7.5 |
|
|
|
2.5 |
|
|
500/5 |
7.5 |
|
|
|
2.5 |
|
|
600/5 |
10 |
|
|
|
3.75 |
|
SELECTION GUIDE
|
Model |
Primary rated current |
Rated load |
Aperture (mm) |
Description (mm) |
Weight (kg) |
Material |
Water-proof |
|
LMCK055-10 |
300-1200A |
≤10VA |
φ55 |
180×138×52 |
2 |
PC |
IP65 |
|
LMCK185-10 |
300-3000A |
≤25VA |
φ185 |
350×283×55 |
4.5 |
PC |
IP65 |
|
LZCK310-10 |
300-600A |
≤10VA |
φ50 |
φ50 x φ110 x 32 |
1 |
Resin |
silicon case (option) |
|
LZCK322-10 |
30-600A |
≤10VA |
φ50 |
φ50 x φ110 x 52 |
1.6 |
Resin |
silicon case (option) |
|
LZCK350-10 |
20-600A |
≤25VA |
φ50 |
φ50 x φ110 x 105 |
3.1 |
Resin |
silicon case (option) |
|
LZCG530-10 |
30-600A |
≤20VA |
φ45 |
φ45 x φ120 x 65 |
2.1 |
Resin |
silicon case (option) |
ORDERING INFORMATION
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.All kinds of different specifications and parameters current transformers can be made according to your needs.
