Q8A 10A HIGH SENSITIVITY 0.1% PERMALLOY CORE CT SPLIT CORE AC CURRENT CLAMP
-
-
Large Image :

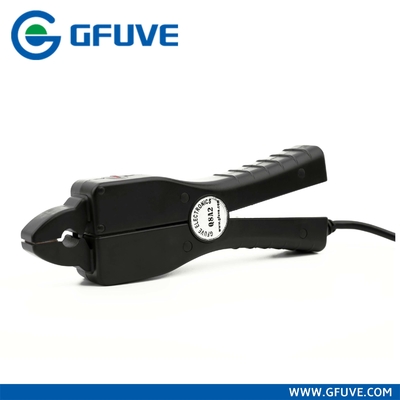

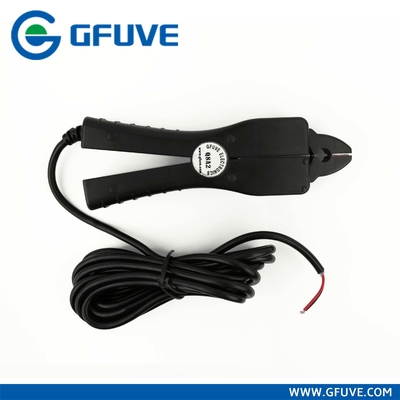

Q8A 10A HIGH SENSITIVITY 0.1% PERMALLOY CORE CT SPLIT CORE AC CURRENT CLAMP
|
Product Details:
Place of Origin: |
BEIJING CHINA |
Brand Name: |
GFUVE |
Certification: |
ISO9001, CE, UL |
Model Number: |
Q8A-2 |
Payment & Shipping Terms:
Minimum Order Quantity: |
3PCS |
Price: |
80USD |
Packaging Details: |
STANDARD EXPORT WOODEN BOX |
Delivery Time: |
3DAYS |
Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
CLASS: |
0.1 |
TURN RATIO: |
2500 |
MAX CURRENT: |
12A |
RATIO: |
10A/4mA |
COLOR: |
BLACK |
CABLE: |
3M |
TYPE: |
AC CURRENT CLAMP |
JAW: |
8mm |
WEIGHT: |
250G |
MATERIAL: |
PC+ABS+Polycarbonate |
Q8A-2 10A HIGH SENSITIVITY 0.1% PERMALLOY CORE CT AC CURRENT CLAMP
The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.It is also suite for energy meter calibrator on site.
FEATURES
- Suitable for 5A, 10A cable online measurement
- Holding wire diameter: φ8mm
- Dimension: 45mm×158mm×25mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
- Low phase shift
- Class 0.1
PARAMETERS
Electrical parameters |
Ratio |
1000: 1 or 2000:1 (customized) |
Accuracy |
0.1 %,0.2% |
Primary current |
0 - 10A AC |
Secondary current |
0 - 10mA AC or 0 - 100mV AC (customized) |
Max. Cont.Input current |
12 A |
Over voltage category |
CAT III 600V |
Output signal (AC current) |
From 0 to 10mA AC at nominal input current |
Output signal (AC voltage) |
From 0 to 10mA AC at nominal input current |
Frequency range |
40Hz-2000Hz |
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
Temperature range |
-20°C to +55°C |
Output |
2.5 meter cable with D01 connector |
Max. voltage not insulated conductors |
600 V |
Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation |
Clamp type |
Output mode |
Lead output(2.5m) |
Mechanical parameters |
Dimensions (L x W x H) (mm) |
45x158x25 |
Weight (g) |
250 |
Holding wire diameter (mm) |
φ8 |
Max. jaw opening (mm) |
8 |
Color |
Black |
Material |
PC+ABS+Polycarbonate, UL94 V0 |
