Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor

China Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier
Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor supplier

Large Image :  Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: ISO9001, CE, UL
Model Number: Q50A

Payment & Shipping Terms:

Minimum Order Quantity: 3PCS
Price: 88USD/PCS
Packaging Details: STANDARD EXPORT BOX
Delivery Time: 7DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/MONTH
Contact Now
Detailed Product Description
CLASS: 0.1 RATIO: 1000:1
COLOR: BLUE OR GREY OUTPUT SIGNAL: 0-1A
CABLE LENGTH: 2.5M STANDARD: EN 61010-1, EN 61010-2-032, IEC60044-1
WEIGHT: 550g JAW: 50mm
TYPE: Ct Ac Current Clamp Sensor Material: ABS Or PC

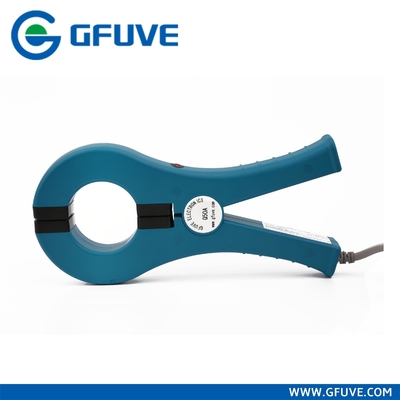

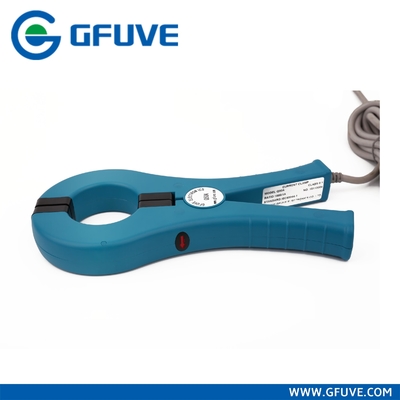

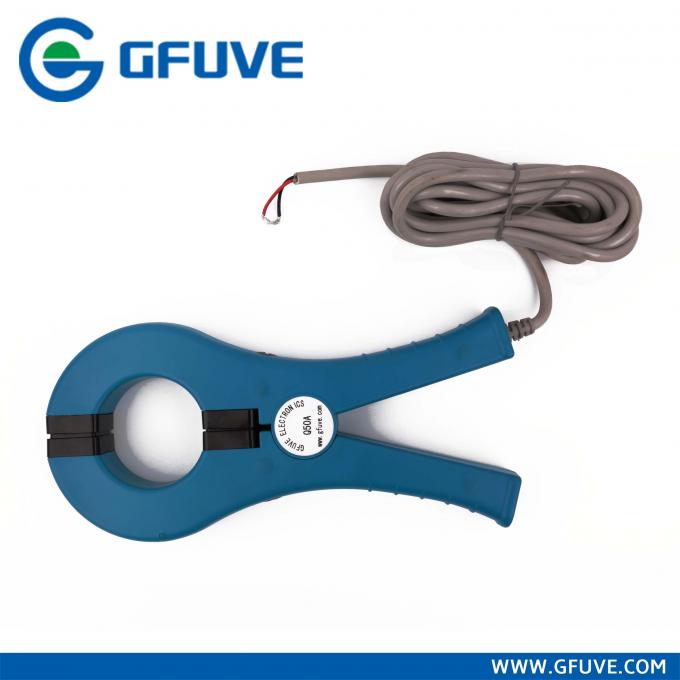

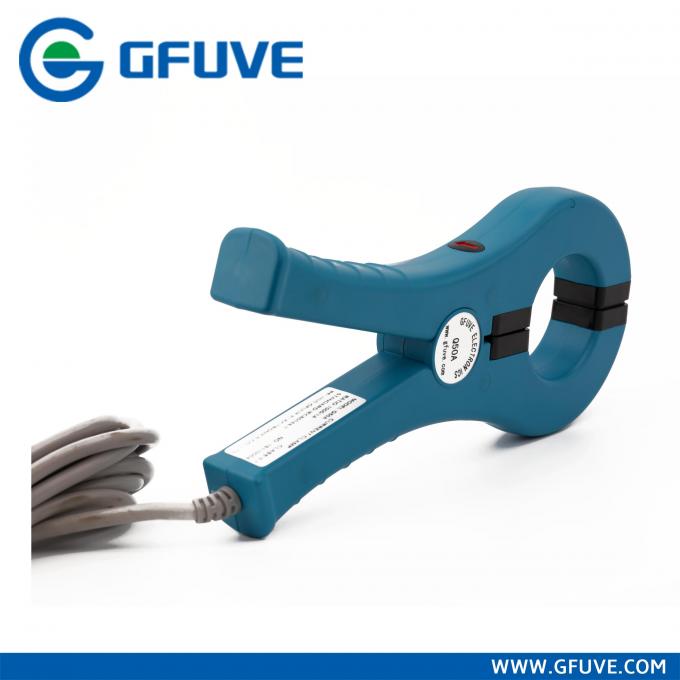

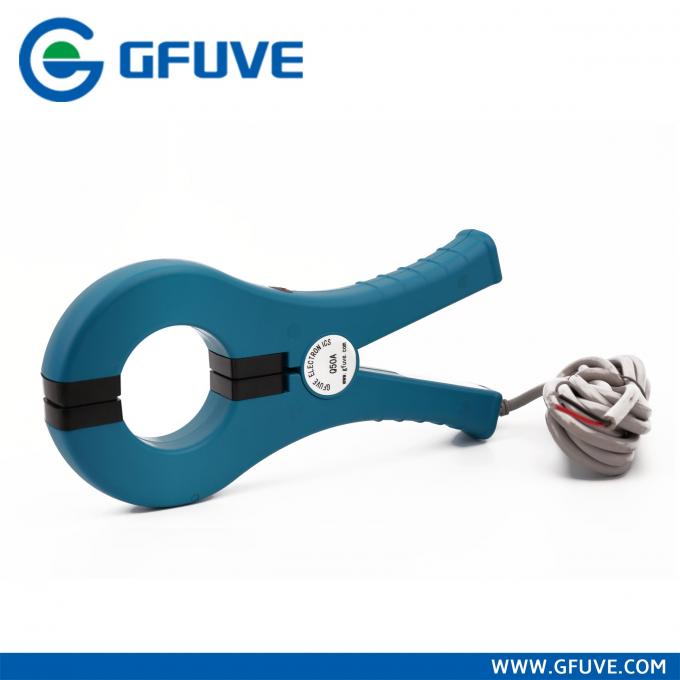

Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor

The round jaw design on the Q50 Series AC current clamp sensors along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A.
The Q50A is a general purpose 1000A AC current clamp sensor designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The Q50A has an integral 2.5m lead terminated. The rounded jaw design on this sensor makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

Q50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensorQ50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensorQ50A 1000/1A class 0.1 high precision measurement split core ac ct current clamp sensor

FEATURES

  • Suitable for 1000A cable online measurement
  • Holding wire diameter: φ50mm
  • Dimension: 101mm×219mm×26mm
  • Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
  • Installation: clamp type
  • Output mode: lead output
  • Low phase shift
  • Class 0.1

PARAMETERS

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%, 0.5%
Primary current 0 - 1000A AC
Secondary current 0 - 5A AC (customized)
Max. Cont. Input current 1200A
Over voltage category CAT III 600V
Output signal 500mA,1A,5A AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 102.9 x 219.6 x 28
Weight (g) 550
Holding wire diameter (mm) φ50
Max. jaw opening (mm) 50
Jaw Color Blue
Material PC+ABS+Polycarbonate, UL94 V0



http://www.gfuve.com/upfile/pdf/Q50A-Current-Probe-GFUVE.pdf
