110mm DIAMETER JAW 1000/5A OPENING PERMALLOY COMPACT SPLIT CORE AC CURRENT SENSOR
-
-
Large Image :

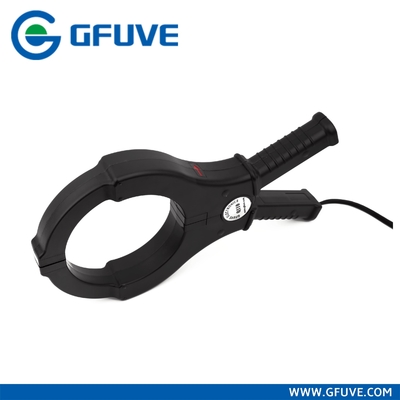

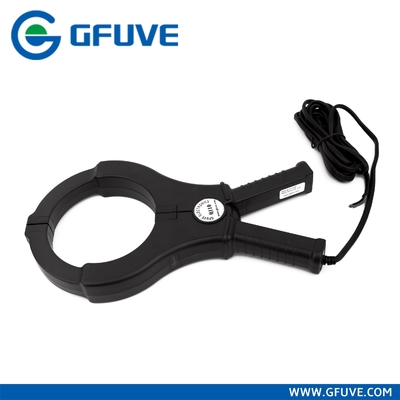

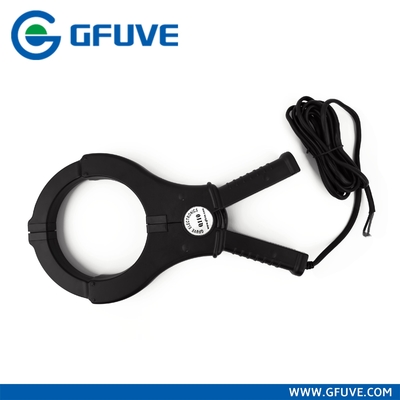

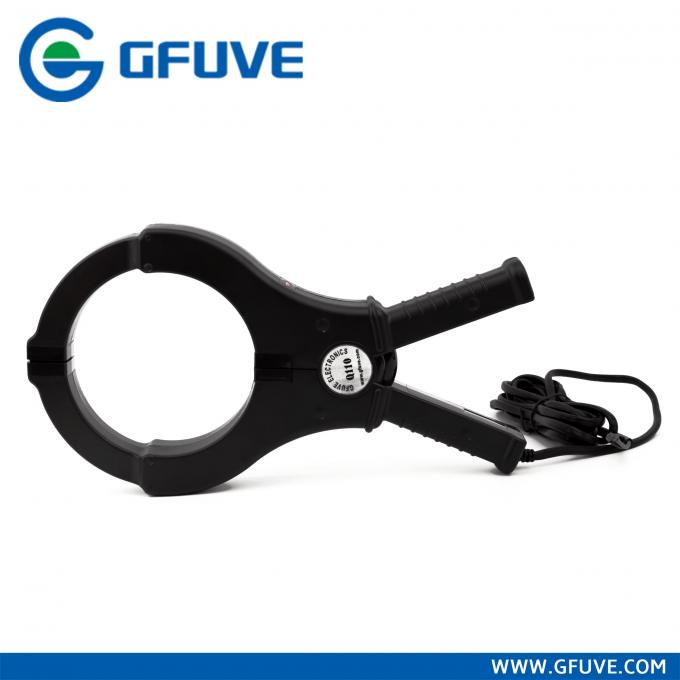

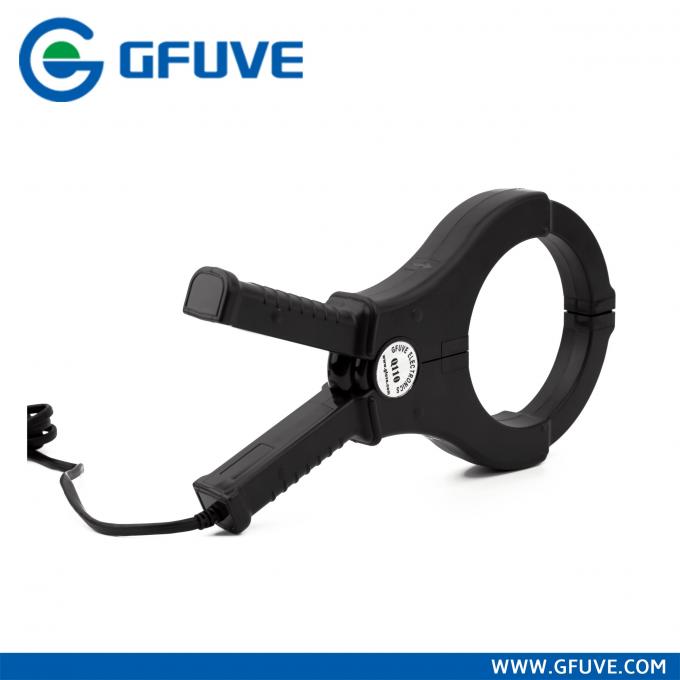

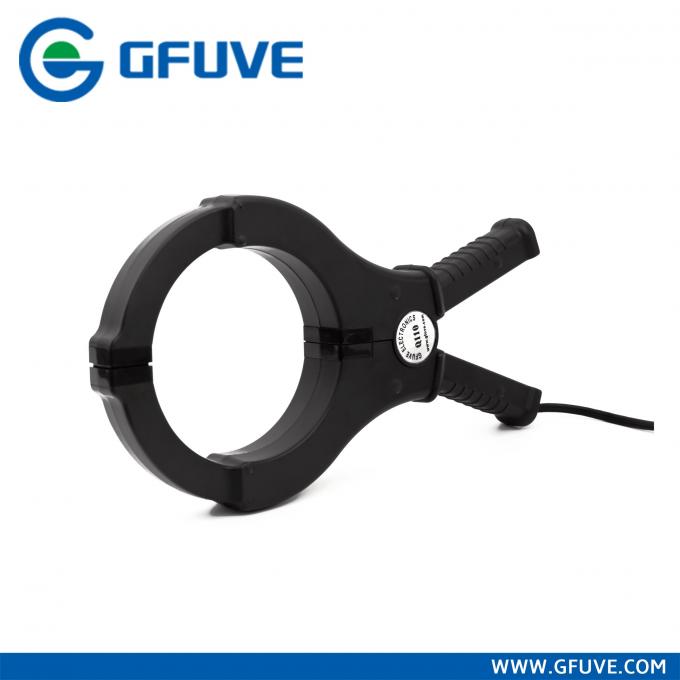

110mm DIAMETER JAW 1000/5A OPENING PERMALLOY COMPACT SPLIT CORE AC CURRENT SENSOR
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001,CE,UL |
| Model Number: |
Q110 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3PCS |
| Price: |
250USD |
| Packaging Details: |
STANDARD EXPORT BOX |
| Delivery Time: |
7DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
| CLASS: |
0.1, 0.2, 0.5 |
RATIO: |
1000:5 OR 1000:1 |
| COLOR: |
BLACK |
JAW: |
110MM |
| WEIGHT: |
900G |
TYPE: |
SPLIT CORE AC CURRENT SENSOR |
| OUTPUT SIGAL: |
0-5A, 0-1A OR 0-5V |
LOAD: |
4Ω |
| Frequency Range: |
40-2000HZ |
Material: |
ABS +PC+ Permalloy |
Q110 110mm DIAMETER JAW 1000/5A OPENING PERMALLOY COMPACT SPLIT CORE AC CURRENT SENSOR
The model Q110 split core AC current sensor is a high accuracy ct, the advanced design ensures enhanced linearity and the jaw opening system provides enhanced safety. its diameters are 110mm, low phase shift, high precision ac current sensor. This current sensor is suite cable fault testing, ct ratio testing, large current testing and instruments testing etc.
FEATURES
- This product can be used in large current situation; also can cooperate to cable fault tester and cable identification device, used for cable test work.
- Holding wire diameter: φ110mm
- Dimension: 163mm×310mm×34mm
- Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
- Installation: clamp type
- Output mode: lead output
PARAMETERS
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.2%, 0.5%, 1% |
| Primary current |
0 - 1000A AC |
| Secondary current |
0 - 5A AC (customized) |
| Max. Cont. Input current |
1200A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) |
333mV,500mV,1V,5V AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
163 x 310 x 34 |
| Weight (g) |
900 |
| Holding wire diameter (mm) |
φ110 |
| Max. jaw opening (mm) |
110 |
| Jaw Color |
Black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
| Model |
Rate Current |
Max Current |
Secondary Current |
Coil Ratio |
Burden Resistance |
Accuracy |
| Q110-500 |
500A |
600A |
5A |
100:1 |
2.5VA |
0.5% |
| Q110-600 |
600A |
720A |
5A |
120:1 |
2.5VA |
0.5% |
| Q110-800 |
800A |
960A |
5A |
160:1 |
2.5VA |
0.5% |
| Q110-1000 |
1000A |
1200A |
5A |
200:1 |
2.5VA |
0.5% |
| Q1101-200 |
200A |
240A |
1A |
200:1 |
customized |
0.2% |
| Q1101-300 |
300A |
360A |
1A |
300:1 |
customized |
0.2% |
| Q1101-400 |
400A |
480A |
1A |
400:1 |
customized |
0.2% |
| Q1101-500 |
500A |
600A |
1A |
500:1 |
customized |
0.2% |
| Q1101-600 |
600A |
720A |
1A |
600:1 |
customized |
0.2% |
| Q1101-800 |
800A |
960A |
1A |
800:1 |
customized |
0.2% |
| Q1101-1000 |
1000A |
1200A |
1A |
1000:1 |
customized |
0.1% |
| Q1102-500 |
500A |
600A |
500mA |
1000:1 |
customized |
0.1% |
| Q1102-600 |
600A |
720A |
500mA |
1200:1 |
customized |
0.1% |
| Q1102-800 |
800A |
960A |
500mA |
1500:1 |
customized |
0.1% |
| Q1102-1000 |
1000A |
1200A |
500mA |
2000:1 |
customized |
0.1% |
| Q1103-800 |
800A |
960A |
400mA |
2000:1 |
customized |
0.1% |
| Q1103-1000 |
1000A |
1200A |
400mA |
2500:1 |
customized |
0.1% |
| Q1104-250 |
250A |
300A |
250mA |
1000:1 |
customized |
0.1% |
| Q1104-500 |
500A |
600A |
250mA |
2000:1 |
customized |
0.1% |
| Q1104-1000 |
1000A |
1200A |
250mA |
4000:1 |
customized |
0.1% |
