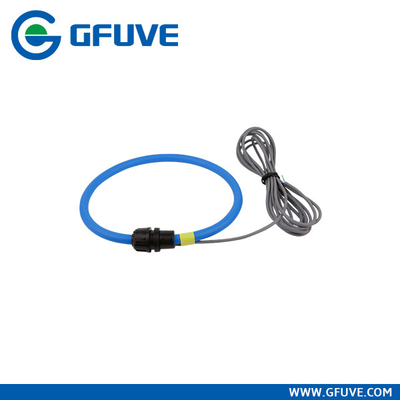

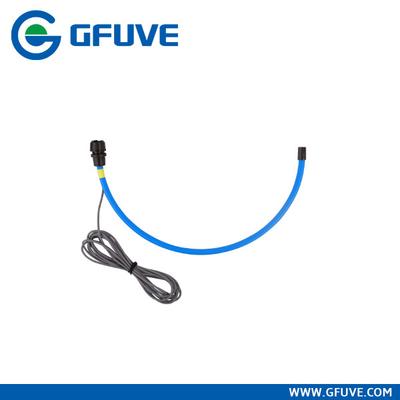

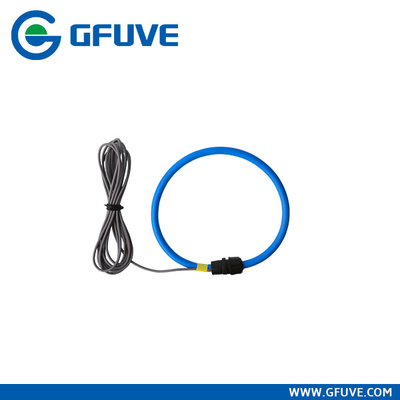

400mm length blue color 3000A AC Flexible split Rogowski Coil Current Sensor

Large Image : 400mm length blue color 3000A AC Flexible split Rogowski Coil Current Sensor

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	ISO 9001 : 2008; CE
Model Number:	FQ-RCT01-190

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	USD10---350
Packaging Details:	Standard export box
Delivery Time:	3days
Payment Terms:	T/T, Western Union, Paypal, L/C, D/A, D/P, MoneyGram
Supply Ability:	10000units/Months

Contact Now

Detailed Product Description

Measuring Range:	0-3000A	Accuracy Class:	1%
Operating Temperature:	-20~+70°C	Display Type:	Analog Only
FQ-RCT01:	3000A Rogowski Coil Current Sensor	Frequency:	20-2KHz
Coil Length:	300mm, 400mm, 600mm, 1000mm	Application:	Current Sensor Measurement
Linearity Error:	0.2%	Color:	Red And Blue, Black

FQ-RCT01 400mm length blue color 3000A AC Flexible split Rogowski Coil Current Sensor

400mm length blue color 3000A AC Flexible split Rogowski Coil Current Sensor

The FQ-RCT01 1000mm length blue color 3000A AC Flexible split Rogowski Coil Current Sensor are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

APPLICATIONS

Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems

FEATURES

Flexible and light weights
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
Excellent linearity
Multi-size are available

GENERAL DATA

Ambient operating temperature: -40~+70°C
Ambient storage temperature: -45~+75°C
Standards safety:IEC 61010-1:2001, 600 V CAT III

PARAMETERS

Electrical parameters
Model		FQ-RCT01-120	FQ-RCT01-190	FQ-RCT01-305	FQ-RCTA01-120	FQ-RCTA01-190	FQ-RCTA01-305
Current range		10A~30kA			10A~6000A
Frequency		25Hz~20kHz			45Hz~600Hz
Output voltage	Rated current	1000A	2000A	3000A	250A, 500A, 800A, 1000A	1000A, 1500A, 2000A, 2500A	1000A, 2000A, 2500A, 3000A
	50Hz	100mV AC	200mV AC	300mV AC
	50Hz	100mV AC	200mV AC	300mV AC	333mV 1mV/A@1000-3000A(0.5mV/A@4000-6000A)
Max output		/			3.0V AC max
Accuracy		<1% @25°C (45-65Hz)			<1% @25°C (45-65Hz)
Phase error		<60’ @25°C (45-65Hz)			<60’ @25°C (45-65Hz)
Output sensitivity		±2% Max (No Calibration) ±0.5% @25°C (With Calibration)			1%
Linearity error		±0.2% (10%-100%I1n)			±0.2%
Position sensitivity		±2%			±2%
External influence		±2% Max			±1.5% Max
Power supply		/			10-30VDC,30mA Max.
