1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER

Good quality Current Transformer for sales
I'm Online Chat Now

1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER

China 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier
1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER supplier

Large Image :  1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: GF106T

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD6000-12000
Packaging Details: Standard export box
Delivery Time: 7days
Payment Terms: T/T, Western Union, Paypal, MoneyGram
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
CLASS: 0.2 PHASE ERROR: 4min
CT Ratio Range: 1-10000/5A Or 1A ACCURACY: 0.5%
PT RATIO RANGE: 1-10000 RESISTANCE: 0.1-300Ω
WIGHT: 23KG PRIMARY CURRENT CABLE: 4M LENGHT CABLE

GF106T 1000A/2500V high ACCURACY PORTABLE Current transformer CT ANALYZER

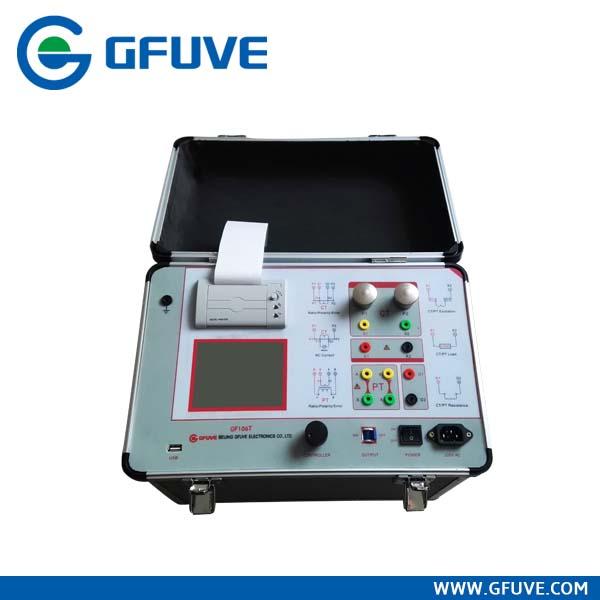

GF106T 1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZERHIGH ACCURACY CURRENT TRANSFORMER CT ANALYZER is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopting LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.
1000A/2500V HIGH ACCURACY PORTABLE CURRENT TRANSFORMER CT ANALYZER

MAIN FUNCTIONS

I. Current Transformer (CT) II. Voltage Transformer (PT)
1. Magnetization curve 1. Excitation characteristic test
2. Transformation ratio test 2. Transformation ratio test
3. Polarity 3. Polarity
4. 5% and 10% error curve 4. Withstand test of power frequency alternating current
5. Current Injecting 5. Degauss
6. Degauss 6. Calculation of knee point value
7. Withstand test of power frequency alternating   current 7. Actual secondary load test
8. Automatic calculation of excitation knee
point value
8. Resistance test
9. Actual secondary load test
10. Resistance test

PARAMETERS

Electrical parameters
Accuracy 0.2%, 0.5%
Power supply AC 220V±10% or AC 110V±10%, 50/60Hz
Excitation voltage output 0-2500Vrms,
Excitation current output 0-5Arms (20A peak-value)
Large current output 0-1000A
Electrical parameters - continued
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary winding DC resistance measurement Range 0.1-300Ω
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary actual load measurement Range 5VA-1000VA
Accuracy ≤0.5% (0.2%RD+0.3%RG)±0.1VA
CT/PT phase error measurement Accuracy ±4min
Resolution 0.01min
CT ratio error measurement Range ≤25000A/5A(5000A/1A)
Accuracy ≤0.5%
PT ratio error measurement Range 1-500KV
Accuracy ≤0.5%
Standards
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 Class A
IEC 1000-4-2 /3 /4 /6
Mechanical parameters
Overall dimension (L x W x H) (mm) 400 x 250 x 250
Weight (kg)   ≤22
Environmental conditions
Relative humidity    90RH%
Operating temperature -10°C to +40°C
Altitude ≤1000m
