Ratio: | 1000: 1 Or 2000:1 (customized) | Accuracy Class: | 0.1 %,0.2% |
---|---|---|---|
Primary Current: | 0 - 10A AC | Secondary Current: | 0 - 10mA AC Or 0 - 100mV AC (customized) |
Max. Cont. Input Current: | 12A | Max. Voltage Not Insulated Conductors: | 600 V |
Over Voltage Category: | CAT III 600V | Output Signal (AC Current): | From 0 To 10mA AC At Nominal Input Current |
Output Signal (AC Voltage): | From 0 To 100mV AC At Nominal Input Current | Frequency Range: | 40Hz-2000Hz |

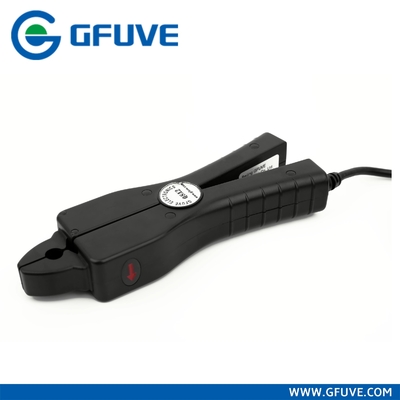

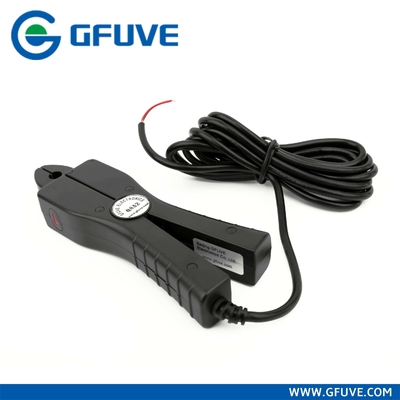

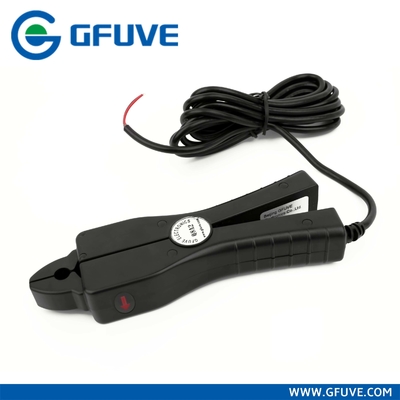

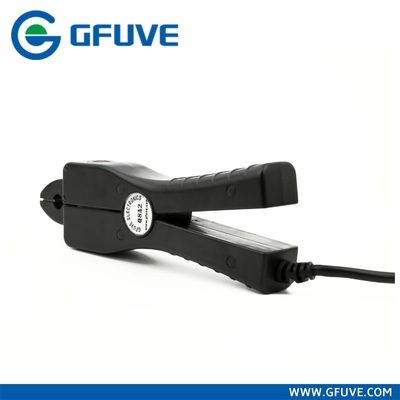

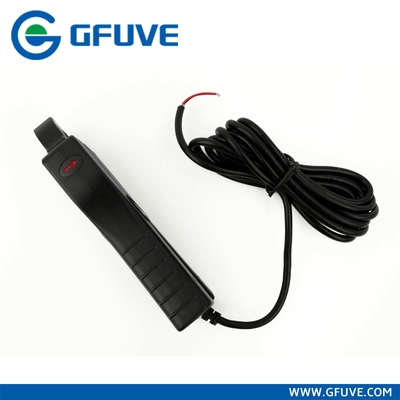

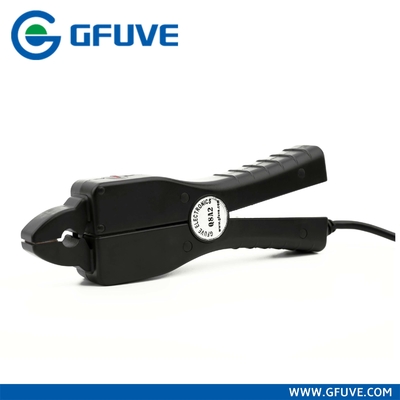

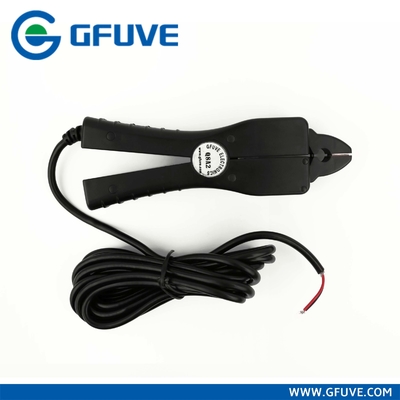

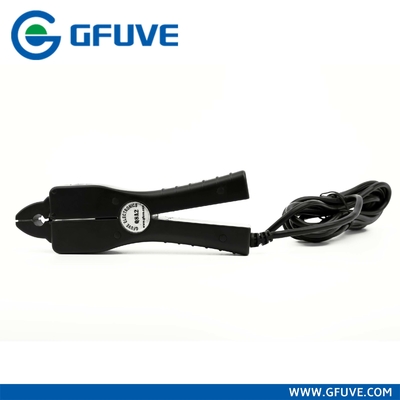

The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 10A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shiftfor power measurement
5. With load capacity≤ 4Ω
6. Output model: Lead output(2.5m)
