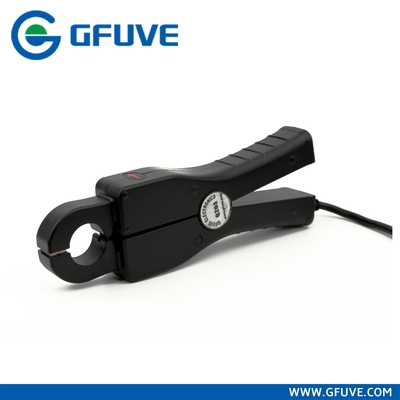

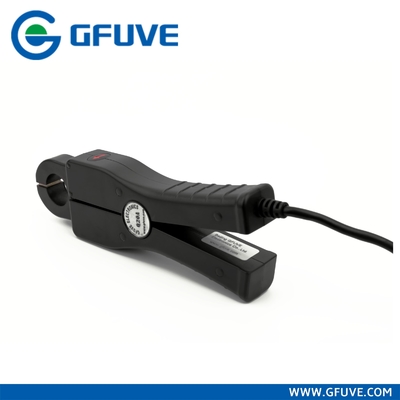

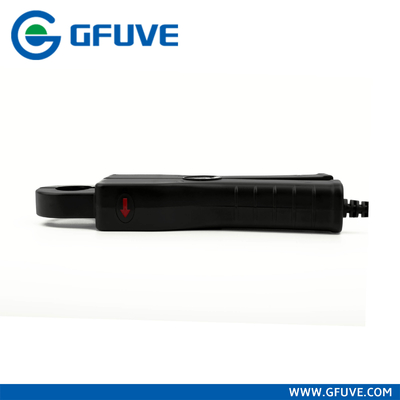

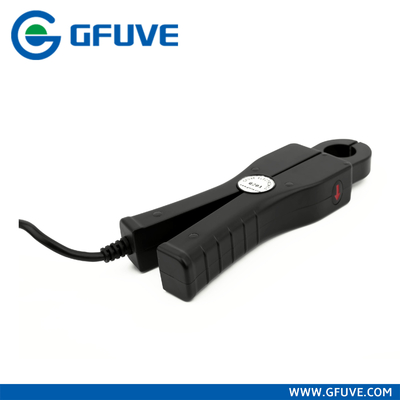

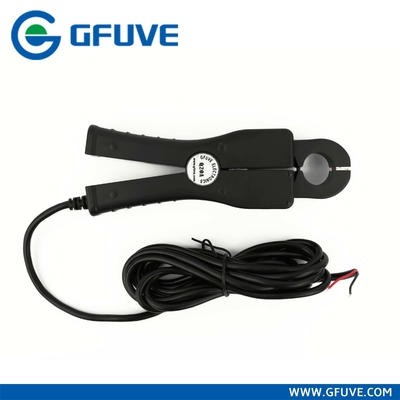

Q20A High Accuracy Handheld Mini Black Current Clamp On Sensors suitable for 200A cable online measurement
Detailed Product Description
| Q20A: |
Current Clamp On Sensors |
Ratio: |
1000: 1 Or 2000:1 (customized) |
| Primary Current: |
0 - 200A AC |
Secondary Current: |
0 - 200mA AC (customized) |
| Max. Cont. Input Current: |
240A |
Frequency Range: |
40Hz-2000Hz |
| Dielectric Strength: |
3KV 50Hz/60Hz At 1 Minute |
Dimensions (L X W X H) (mm): |
48 X 186 X 27 |
| Weight (g): |
300 |
Holding Wire Diameter (mm): |
φ20 |
| Color: |
Black |
Material: |
PC+ABS+Polycarbonate, UL94 V0 |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION
Q20A High accuracy magnetic mini current clamp on current sensors
The model Q20A clamp on sensor is ideal for using with electronic meter or other device with AC current input, it is suitable for 200A cable online measurement.
Features
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2% |
| Primary current |
0 - 200A AC |
| Secondary current |
0 - 200mA AC (customized) |
| Max. Cont. Input current |
240A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) |
From 0 to 200mA AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
48 x 186 x 27 |
| Weight (g) |
300 |
| Holding wire diameter (mm) |
φ20 |
| Max. jaw opening (mm) |
20 |
| color |
Black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
