Theory: | Current Sensor | Output: | Analog Sensor |
---|---|---|---|
Usage: | Current Sensor | Material: | ABS+PC |
Accuracy: | 0.1% | Jaw: | 20mm |
Ratio: | 2000:1 | Weight: | 420g |
Color: | Grey And Red | Current Range: | 0-200A |

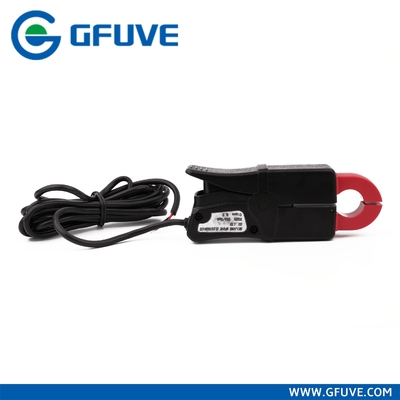

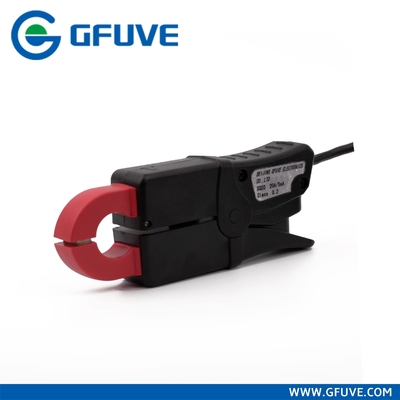

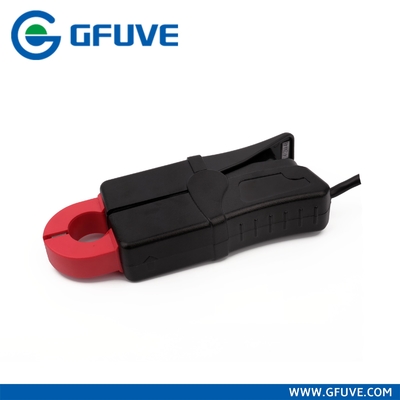

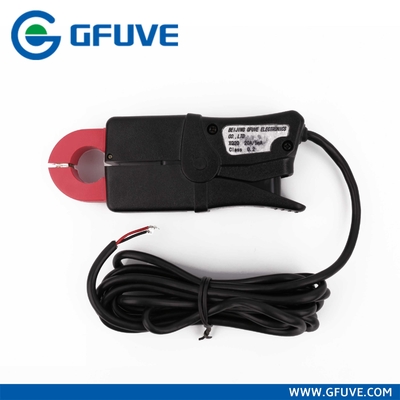

The HQ15 AC Current Probe is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class.
Electrical parameters | ||
---|---|---|
Model | HQ15-A5 | HQ15-A100 |
Rated primary current | 5A AC | 100A AC |
Output Voltage | 10 mV AC/A | 1mV AC/A |
Maximum input current | 50A AC (Continuous) | 130A AC (Continuous) |
(45-66Hz,Ambient temp.50°C) | ||
Amplitude accuracy | ±0.3%RD±0.02%FS (10%-100%I1n), 45Hz- 66Hz) | |
The amplitude frequency characteristic | ±0.1% (45Hz-5kHZ)( Deviation accuracy) | |
Conductor impact | ±0.5 (Off-center) | |
The influence of external lectromagnetic fields | ≤0.1A (In AC 400A / m electromagnetic fields) | |
Temperature coefficient | ±0.02%/°C of the reading data | |
Dielectric strength | 3000 V AC rms/Continue 15 seconds(Circuits-iron core, iron core-shell) | |
The maximum rated voltage | 300V AC rms | |
Applicable standards | Safety: EN61010-2-032:2002,300V CAT III, Contamination II EMC: EN61326:1997+A1:1998+A2:2001+A3:2003(Class A) |
|
Mechanical parameters | ||
Measurable conductor diameter | Max.15mm | |
Cable length | About 3m | |
Dimension (W x H x D) | About 46×135×21 (Excluding protruding parts) | |
Weight | About 230g | |
Environmental conditions | ||
Operating temperature | 0 to 50°C (32-122°F) | |
Operating humidity | ≤80%RH(No condensate) | |
Storage temperature | -10 to 60°C (14-140°F) | |
Storage humidity | ≤80%RH(No condensate) | |
Operating environment | Indoor, altitude up to 2000 meters |
