HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR

China HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR supplier
HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR supplier HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR supplier HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR supplier HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR supplier

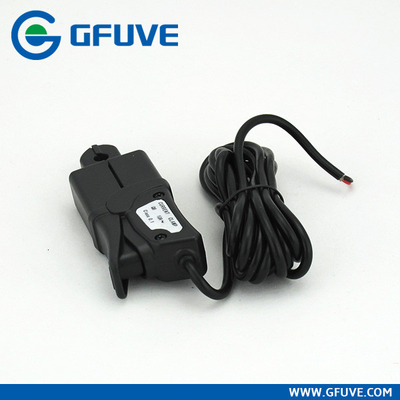

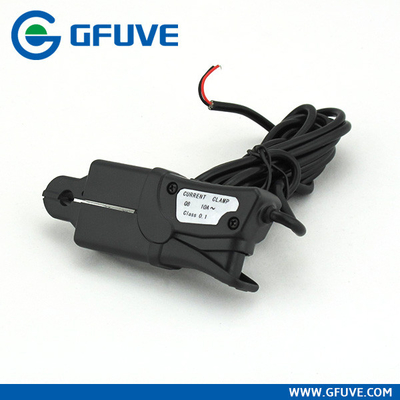

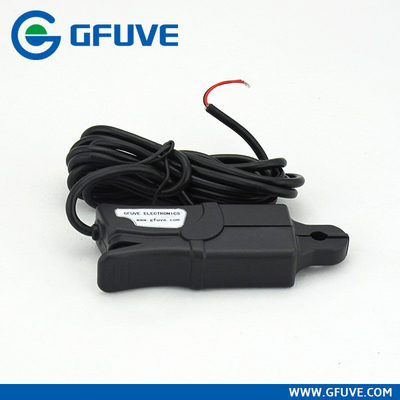

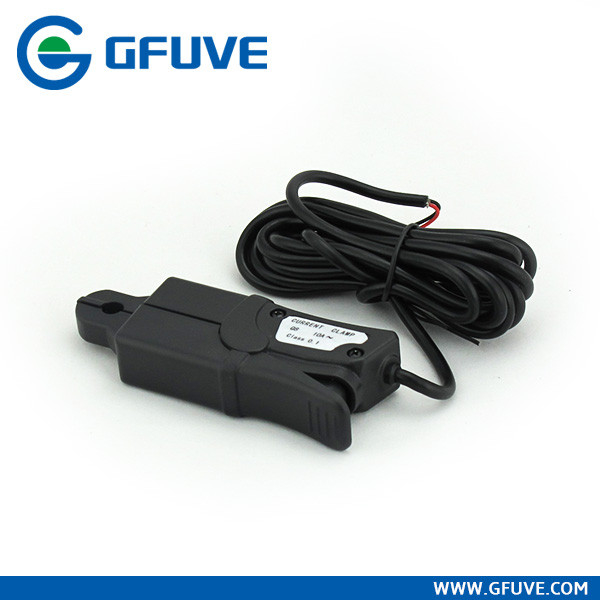

Large Image :  HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: Q8

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: USD1---100
Packaging Details: Standard export box
Delivery Time: 7days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Usage: Magnetic Sensor Theory: Current Sensor
Output: Analog Sensor

Q8 HIGH PERFORMANCE COPPER WIRE CLAMP-ON AC CURRENT SENSOR

The model Q8 copper wire clamp-on ac current sensor is suitable for 5A, 10A cable online measurement, the user friendly shape make It easily clamp onto cables.

FEATURES

  • Suitable for 5A, 10A cable online measurement.
  • Holding wire diameter: φ8mm
  • Dimension: 42.6mm × 122.5mm × 23mm
  • Load capacity: ≤4Ω
  • Installation: clamp type
  • Output mode: lead output


PARAMETERS

Electrical parameters
Ratio1000: 1 or 2000:1 (customized)
Accuracy class0.2%, 0.5%
Primary current0 - 10A AC
Secondary current0 - 10mA AC (customized)
Max. Cont. Input current12 A
Load capacity≤4Ω
Over voltage categoryCAT III 600V
Output signal10mA AC at nominal input current
Frequency range40Hz-2000Hz
Dielectric strength3KV 50Hz/60Hz  at 1minute
Temperature range-20°C to +55°C
Output2.5 meter cable with D01 connector
Max. voltage not insulated conductors600 V
StandardEN 61010-1, EN 61010-2-032
Installationclamp type
Output modelead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)42.6× 122.5 × 23
Weight (g)225
Holding wire diameter (mm)φ8
Max. jaw opening (mm)8



Tag:

Clamp on Power Sensor,

high precision current clamp adapter,

Current Clamp Sensor
