Rated Load: | ≤60VA | Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
---|---|---|---|
Rated Frequency: | 50Hz Or 60Hz | Cosø: | 0.8 (lag) |
Rated Voltage: | 10KV, 6KV | Phase Number: | Three |
Rated Insulation Level: | 12/42/75KV, 7.2/32/60KV | Material: | Epoxy Resin |
Weight (kg): | 48 | Class Of Pollution: | II |

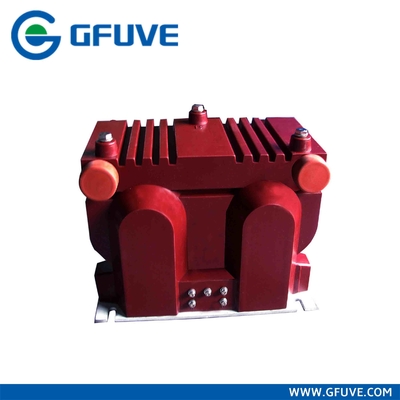

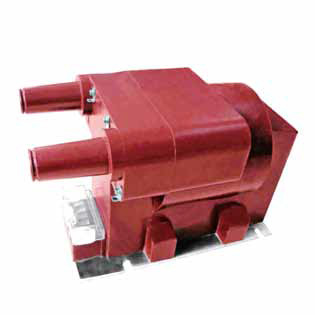

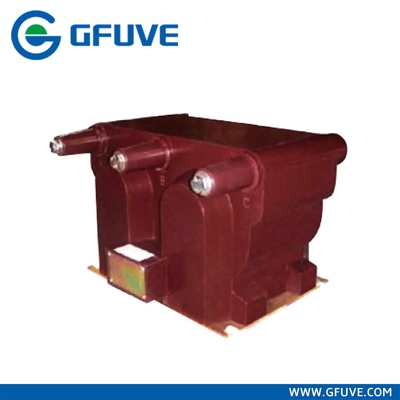

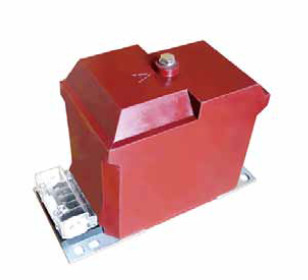

GFJSZV1299-10R Indoor Rated Load 10kv 6kv Epoxy Resin Three Phase Fully Insulation Medium Voltage Current Transformers
The GFUVE GFJSZV1299-10R Indoor Rated Load 10kv 6kv Epoxy Resin Three Phase Fully Insulation Medium Voltage Current Transformers are three-phase multi-winding whole sealing epoxy pouring product. It is used both indoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
