20KV OUTDOOR EPOXY RESIN INSTRUMENT CURRENT AND VOLTAGE TRANSFORMER
-
-
Large Image :
20KV OUTDOOR EPOXY RESIN INSTRUMENT CURRENT AND VOLTAGE TRANSFORMER
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL, KEMA |
| Model Number: |
JDZXW-20G |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3PCS |
| Price: |
500USD |
| Packaging Details: |
STANDARD EXPORT WOODEN BOX |
| Delivery Time: |
7DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
| CLASS: |
0.2 |
MATERIAL: |
RESIN |
| RATIO: |
20KV/0.1KV; 20KV/0.22KV |
COLOR: |
RED OR GREY |
| WEIGHT: |
56KG |
STANDARD: |
IEC60044-2, IEC61869-3 And ANSI/IEEE C57.13 |
| BURDEN: |
30VA |
TYPE: |
OUTDOOR VOLTAGE TRANSFORMER |

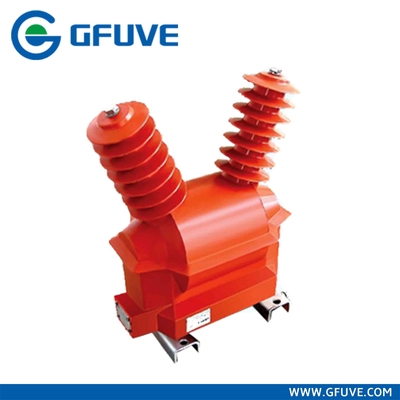

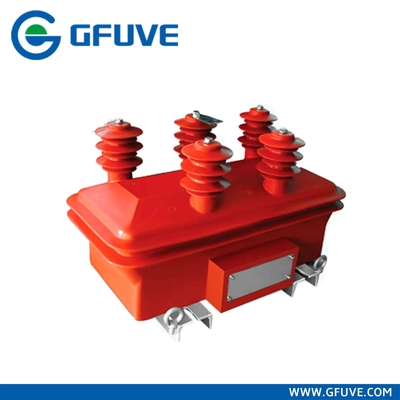

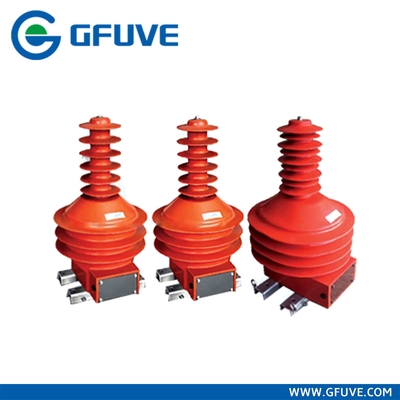

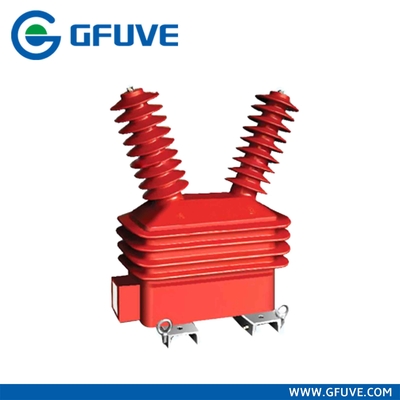

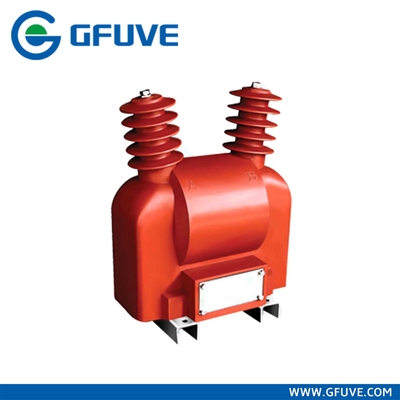

JDZXW-20G 20KV OUTDOOR EPOXY RESIN INSTRUMENT CURRENT AND VOLTAGE TRANSFORMER
This model of instrument current and voltage transformers includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
PARAMETERS
| Model |
Rated Voltage Ratio(KV) |
Accuracy class and Accuracy class combination rated secondary output (VA) |
Limited output (VA) |
Rated insulation level (KV) |
Surface creepage distance (mm) |
Once fuse(A) |
Wt(KG) |
| JSZW-20 |
20000/100 |
0.2---40
0.5---100
1---250
3---500 |
800 |
24/65/125 |
860 |
0.2 |
56 |
| 20000/220 |
| 20000/100/100 |
0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50 |
400/400 |
| 20000/220/220 |
500/800 |
| JDZXW-20G |
20000/√3
100/√3 100/√3 |
0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 |
600 |
|
20000/√3
100/√3 100/√3 100/√3 |
0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 |
300/300 |
