6KV 10KV 11KV DRY TYPE INSTRUMENT POTENTIAL TRANSFORMER FOR MEASUREMENT ENERGY METER
-
-
Large Image :
6KV 10KV 11KV DRY TYPE INSTRUMENT POTENTIAL TRANSFORMER FOR MEASUREMENT ENERGY METER
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
GFJDZ1055-10A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3SETs |
| Price: |
USD100---500 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000pcs/month |
|
Detailed Product Description
| CLASS: |
0.2, 0.5 |
TYPE: |
INSTRUMENT POTENTIAL TRANSFORMER |
| Rate Voltage: |
6kV, 10KV, 11KV, 12KV |
Ratio: |
6KV/0.1, 11kV/0.1 |
| Weight: |
25KG |
Color: |
Red |
| Material: |
Resin |
Standards: |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Warranty: |
5years |
GFJDZ1055-10A1 6KV 10KV 11KV DRY TYPE INSTRUMENT POTENTIAL TRANSFORMER FOR MEASUREMENT ENERGY METER
The Model GFJDZ0929-10 10KV 11KV dry type instrument potential transformer is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
This potential transformer is used for switchgear cabinet to measure voltage value.

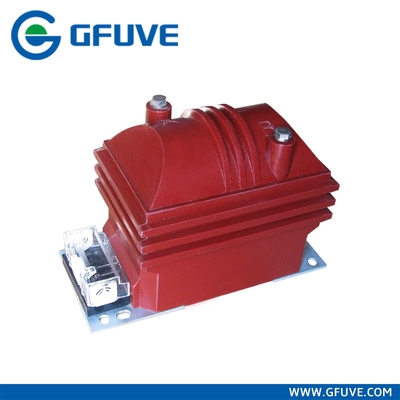

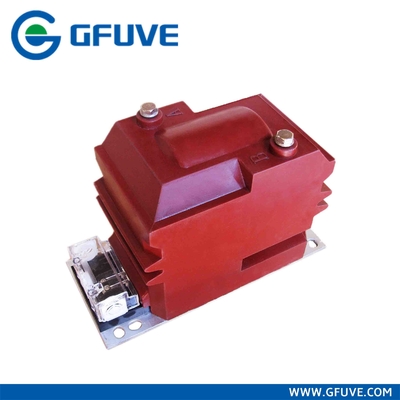

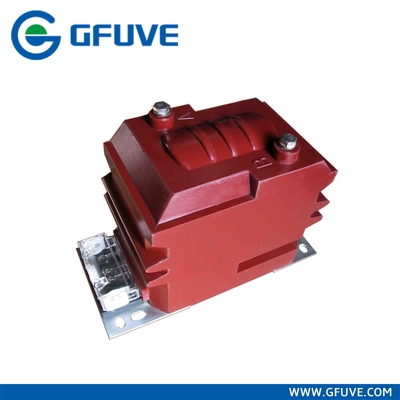

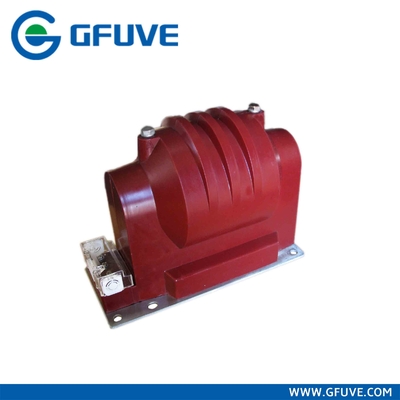

Photos
PARAMETERS
| Technical parameters |
| Standards |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated Voltage |
10KV, 6KV |
| Rated load |
≤25VA |
| Rated frequency |
50Hz or 60Hz |
| Cosø |
0.8 (lag) |
| Phase number |
Single |
| Rated insulation level |
12/42/75KV, 7.2/32/60KV |
| Class of pollution |
II |
| Mechanical parameters |
| Material |
Epoxy resin |
| Weight (kg) |
28 |
| Operating conditions |
| Operating temperature |
-25°C to +55°C |
| Daily average temp |
<+40°C |
| Storage temperature |
-40°C to +70°C |
| Altitude |
<1000 meters |
| Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
TECHNICAL PARAMETERS
| Model |
Rated Voltage Ratio(KV) |
Accuracy class combination |
Rated Output
(VA) |
Limiting Therminal Output(VA) |
| GFJDZ0929-10 |
10/0.1/0.1 |
0.2/0.2
0.2/0.5
0.5/0.5 |
20/20
20/20
25/25 |
400 |
| GFJDZ0929-6 |
6/0.1/0.1 |
Please you visit www.gfuve.com
