Product Details:
Payment & Shipping Terms:
|
Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 | Rated Voltage: | 10KV, 6KV |
---|---|---|---|
Rated Load: | ≤300VA | Rated Frequency: | 50Hz Or 60Hz |
Cosø: | 0.8 (lag) | Phase Number: | Three |
Rated Insulation Level: | 12/42/75KV, 7.2/32/60KV | Material: | Epoxy Resin |
Weight (kg): | 45 | Class Of Pollution: | II |

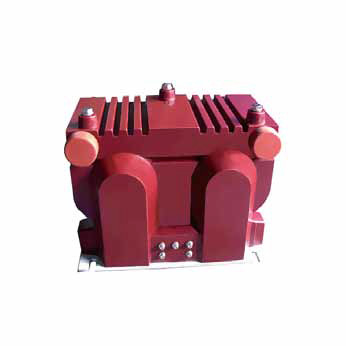

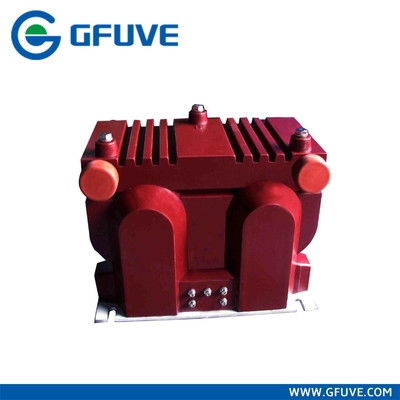

GFJSZV0169-10R three phase indoor 10kv 6kv epoxy resin potential metering standard Variable Primary voltage transformer
The GFUVE GFJSZV0169-10R Variable Primary potential Voltage Transformer PT is three-phase multi-winding whole sealing epoxy pouring product. It is used both indoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
