GFJDZX1053-10 electrical protection and metering voltage transformer indoor fully encloed epoxy resin PT

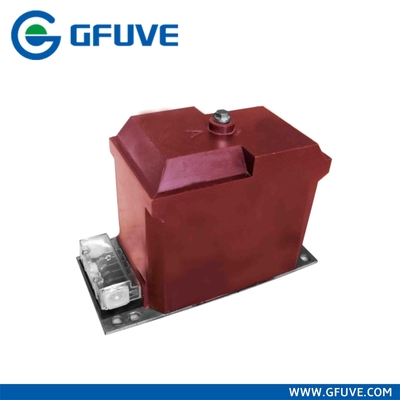

Large Image : GFJDZX1053-10 electrical protection and metering voltage transformer indoor fully encloed epoxy resin PT

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	GFJDZX1053-10

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Voltage:	10KV， 6KV
Rated Load:	≤150VA	Rated Frequency:	50Hz Or 60Hz
Cosø:	0.8 (lag)	Phase Number:	Single
Rated Insulation Level:	12/42/75KV，7.2/32/60KV	Material:	Epoxy Resin
Weight (kg):	22	Class Of Pollution:	II

GFJDZX1053-10 electrical protection and metering voltage transformer indoor fully encloed epoxy resin PT

This model GFJDZX1053-10 potential instrument transformers are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 36kV and below. They are used in indoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

GFJDZX1053-10 electrical protection and metering voltage transformer indoor fully encloed epoxy resin PT
