Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 | Rated Voltage: | 10KV, 6KV |
---|---|---|---|
Rated Load: | ≤240VA | Rated Frequency: | 50Hz Or 60Hz |
Cosø: | 0.8 (lag) | Phase Number: | Single |
Rated Insulation Level: | 12/42/75KV,7.2/32/60KV | Material: | Epoxy Resin |
Weight (kg): | 35 | Class Of Pollution: | II |

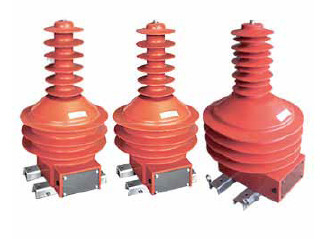

GFJDZ0966-10Q single phase epoxy resin voltage transformer Variable Voltage Measuring transformers pt
The Model GFJDZ0966-10Q Variable Voltage Measuring transformers pt is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
