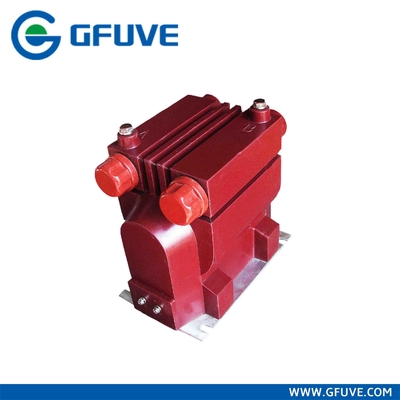

GFJDZ0835-10R GFUVE 6KV 10KV single phase international epoxy resinvoltage transformer

Large Image : GFJDZ0835-10R GFUVE 6KV 10KV single phase international epoxy resinvoltage transformer

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	GFJDZ0835-10R

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Voltage:	10KV， 6KV
Rated Load:	≤120VA	Rated Frequency:	50Hz Or 60Hz
Cosø:	0.8 (lag)	Phase Number:	Single
Rated Insulation Level:	12/42/75KV，7.2/32/60KV	Material:	Epoxy Resin
Weight (kg):	28	Class Of Pollution:	II

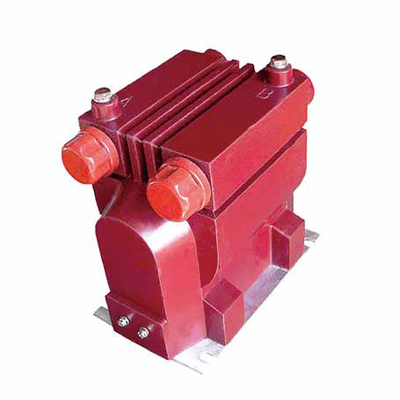

GFJDZ0835-10R GFUVE 6KV 10KV single phase international epoxy resinvoltage transformer

The Model GFJDZ00835-10R 10KV11KV Epoxy Resin Medium Constant Voltage Transformers is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

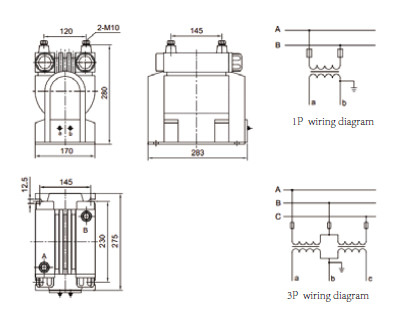

GFJDZ0835-10R GFUVE 6KV 10KV single phase international epoxy resinvoltage transformer
