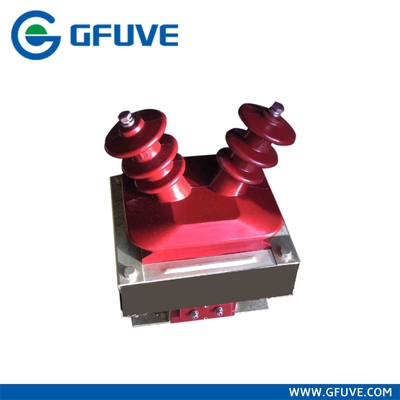

GFJDZ0227-10Q Single Phase Medium Voltage Transformer 6KV 10KV Full Cast-Resin Insulated Epoxy resin Voltage Control

Large Image : GFJDZ0227-10Q Single Phase Medium Voltage Transformer 6KV 10KV Full Cast-Resin Insulated Epoxy resin Voltage Control

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	GFJDZ0227-10Q

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Voltage:	10KV， 6KV
Rated Load:	≤50VA	Rated Frequency:	50Hz Or 60Hz
Cosø:	0.8 (lag)	Phase Number:	Single
Rated Insulation Level:	12/42/75KV，7.2/32/60KV	Material:	Epoxy Resin
Weight (kg):	28	Class Of Pollution:	II

GFJDZ0227-10Q Single Phase Medium Voltage Transformer 6KV 10KV Full Cast-Resin Insulated Epoxy resin Voltage Control

GFJDZ0227-10Q Epoxy Resin Medium Constant Voltage Transformers

The Model GFJDZ0227-10 11KV Epoxy Resin Medium Constant Voltage Transformers is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

GFJDZ0227-10Q Single Phase Medium Voltage Transformer 6KV 10KV Full Cast-Resin Insulated Epoxy resin Voltage Control
