JDZXW-35 JDZXW3-35 Single Phase Voltage Transformer Outdoor Full Cast-Resin Insulated Epoxy resin Voltage Control

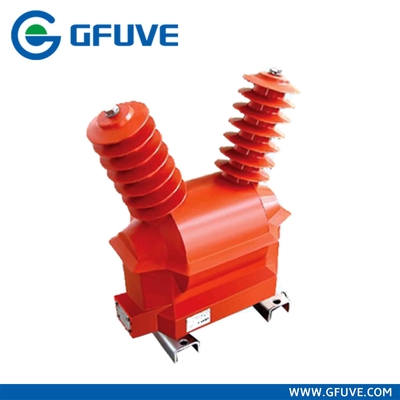

Large Image : JDZXW-35 JDZXW3-35 Single Phase Voltage Transformer Outdoor Full Cast-Resin Insulated Epoxy resin Voltage Control

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	JDZXW-35 JDZXW3-35

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Model:	JDZXW-35 JDZXW3-35
Limited Output (VA):	600/300/800/400	Rated Insula:	40.5/95/200
Surface Creepage Distance (mm):	1450	Once Fuse (A):	0.2
Installation:	Outdoor	Material:	Epoxy Resin
Weight (kg):	64/83

JDZXW-35 JDZXW3-35 Single Phase Voltage Transformer Outdoor Full Cast-Resin Insulated Epoxy resin Voltage Control

JDZXW-35 JDZXW3-35 are series of outdoor voltage transformers are full cast-resin insulated. They are used for metering electric energy, voltage control and relay protection in the electric system up to rated frequency 50Hz or 60Hz and raeted voltage 35kV. The transformers can be executed according to the standards IECl86 and GBl207-2006.

This types of voltage transformers are full enclosed structure of outdoor cast-resin insulation. They have many merits, such as electric arc resistance, ultraviolet ray and aging resistance long creepage distance, Iittle partial discharge and large caliber of resistance to over voltage.

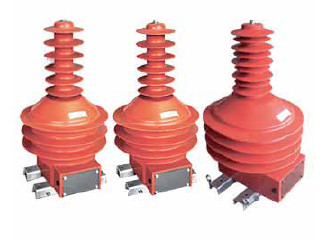

JDZXW-35 JDZXW3-35 Single Phase Voltage Transformer Outdoor Full Cast-Resin Insulated Epoxy resin Voltage Control

JDZXW-35 JDZXW3-35 Single Phase Voltage Transformer Outdoor Full Cast-Resin Insulated Epoxy resin Voltage Control
