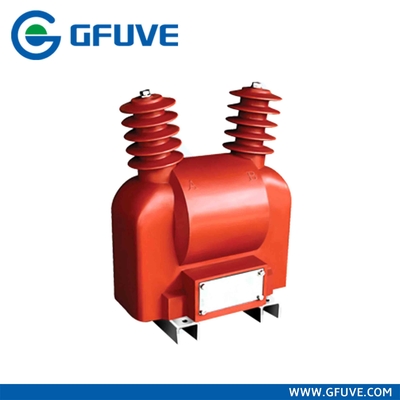

JZFW-24W3 Low/Medium Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin

Large Image : JZFW-24W3 Low/Medium Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	JZFW-24W3

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Primary Voltage:	20KV
Rated Load:	≤100VA	Rated Frequency:	50Hz Or 60Hz
Rated Secondary Voltage:	0.1, 0.1/√3, 0.1/3	Rated Insulation Level:	12/42/75KV
Installation:	Outdoor	Surface Creepage Distance (mm):	562
Material:	Epoxy Resin	Weight (kg):	65

JZFW-24W3 Low/Medium Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin

This model JZFW-24W3 are outdoor Voltage Transformers with performance ratings coinciding with industry standard product offerings. It is used for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 20kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.

JZFW-24W3 Low/Medium Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin
