GFJDZ1157-10A 10KV dry type voltage instrument transformer single-phase multi-winding whole sealing epoxy pouring
Detailed Product Description
| GFJDZ1157-10A: |
10KV Dry Type Voltage Instrument Transformer |
Rated Voltage: |
10KV, 6KV |
| Rated Frequency: |
50Hz Or 60Hz |
Cosø: |
0.8 (lag) |
| Phase Number: |
Single |
Rated Insulation Level: |
12/42/75KV, 7.2/32/60KV |
| Class Of Pollution: |
II |
Material: |
Epoxy Resin |
| Opera�ng Temperature: |
-25°C To +55°C |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

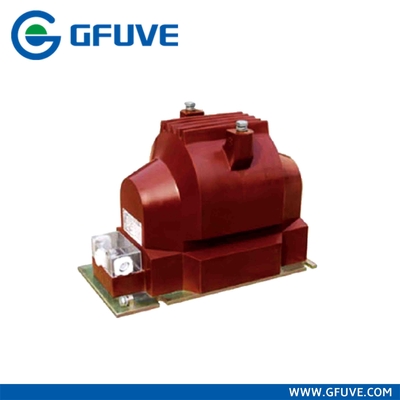

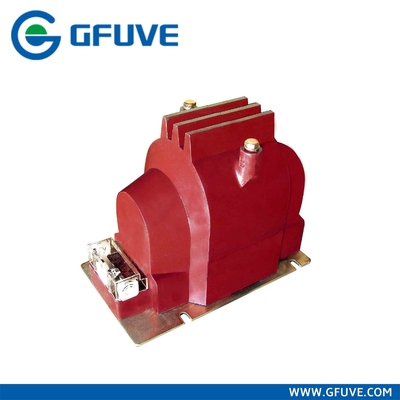

FJDZ0929-10 11KV dry type voltage instrument transformer
The Model GFJDZ0929-10 11KV dry type voltage instrument transformer is single-phase multi-winding whole sealing epoxy pouring product. It is installed in indoor medium voltage switchgear for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. Design in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
Parameters
| Technical parameters |
| Standards |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated Voltage |
10KV, 6KV |
| Rated load |
≤25VA |
| Rated frequency |
50Hz or 60Hz |
| Cosø |
0.8 (lag) |
| Phase number |
Single |
| Rated insulation level |
12/42/75KV, 7.2/32/60KV |
| Class of pollution |
II |
| Mechanical parameters |
| Material |
Epoxy resin |
| Weight (kg) |
35 |
| Operating conditions |
| Operating temperature |
-25°C to +55°C |
| Daily average temp |
<+40°C |
| Storage temperature |
-40°C to +70°C |
| Altitude |
<1000 meters |
| Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
Technical parameters
| Model |
Rated Voltage Ratio(KV) |
Accuracy class combination |
Rated Output
(VA) |
Limiting Therminal Output(VA) |
| GFJDZ0929-10 |
10/0.1/0.1 |
0.2
0.5
1
3
|
40
100
200
240
25
|
400 |
| GFJDZ0929-6 |
6/0.1/0.1 |
|
GFJDZ1157-10A
|
10/0.1/0.1
|
0.2/0.2 0.2/0.5 0.5/0.5
|
2.0/2.2
20/25
60/60
|
10/0.1/0.22
|
0.2/0.5/1 |
20/60/120 |
