GF211B Multi-function Double Clamp Digital Phase Current-voltage Meter
-
-
Large Image :
GF211B Multi-function Double Clamp Digital Phase Current-voltage Meter
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001 |
| Model Number: |
GF211B |
Payment & Shipping Terms:
| Price: |
negotiation |
| Packaging Details: |
standard export carton |
| Delivery Time: |
with in 10 days |
| Payment Terms: |
T/T |
| Supply Ability: |
2000pcs/month |
| Minimum Order Quantity: |
1 |
|
Detailed Product Description
| Sample Price: |
Negotiable |
| High Light: |
PHASE ANGLE METER, DIGITAL PHASE ANGLE METER, HANDHELD DIGITAL PHASE ANGLE METER |
INTRODUCTION:

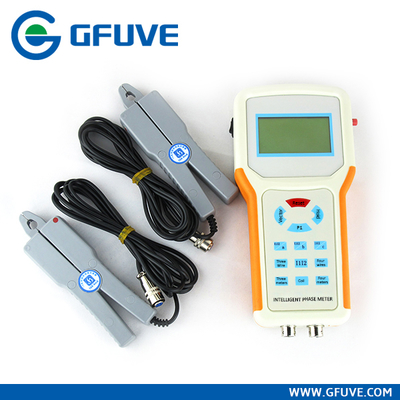

GF211B multi-function double clamp digital phase angle meter is a multi-functional portable instrument. It is an ideal choice for electric power bureau, factories, mine, petroleum-chemistry enterprises, metallurgy factories and so on.
FEATURES
- Measure phase angle between two voltages, between two current or between voltage and current
- Measure alternating voltage (U), alternating current (I), frequency (F), active power (P), reactive power (Q), power factor (PF) and so on.
- Current signal is obtained by the clamp current transformer on line directly
- Discern inductive circuit and capacitive circuit;
- Directly read differential protection phase among every unit of CT
- Can check connection of transformer
- Measure two way voltage phase sequence
- Can check whether the meter connection is right or not
- Can evaluate the running speed of electric kWh meter
- High resolution of current, so can be used as a leakage current meter
PARAMETERS
| Electrical parameters |
|---|
| Accuracy class | 1% |
| Power supply | 3.7V batteries |
| Scale |
|---|
| Phase | 0-360° |
| AC Voltage | 0-500V |
| AC Current | 200mA / 2A / 10A |
| Frequency | 45-65Hz |
| Active power accuracy | 0.5%, resolution 0.01W |
| Power factor | -1 ~ 0 ~ 1, resolution 0.001 |
| Fundamental error (under standard operating environment) |
|---|
| Temperature | 23°C±5°C |
| Moisture | <65% |
| Wave form | Sine wave Distortion ≤1% |
| Frequency | 50±2Hz, 60±2Hz |
| Wire position | Center of clamp |
| Phase measurement | Voltage: 100V±25V
Current: 1A±0.2A |
| Phase accuracy | 1.0% FS |
| Voltage accuracy |
|---|
| 200V | 1.0FS, Resolution 0.1V |
| 500V | 1.0FS, Resolution 1V |
| Current accuracy |
|---|
| 10A | 1.0FS, Resolution 10mA |
| 2A | 1.0FS, Resolution 1mA |
| 200mA | 1.0FS, Resolution 0.1mA |
| Input impedance |
|---|
| When measure voltage | 1MΩ |
| Input voltage impedance | >120KΩ when measure phase |
| Phase measurement |
|---|
| Voltage range | 2-500V |
| Current range | 0.005-10A |
| Additional error |
|---|
| Measure phase angle, the voltage and the current | Less than the fundamental error |
| Measure current | The error led by wires away from center of clamps is less than the fundamental error |
| Safety specification |
|---|
| Resistance to voltage | The meter can resist 1000V (AC sine wave, 50Hz or 60 Hz) for 1 minute between the meter circuit and the meter case; Between input joint U1 and U2 can resist 500V (AC sine wave, 50Hz or 60 Hz) for 1 minute. |
| Insulation resistance | The resistance both between the meter circuit and the meter surface and between the terminals U1 and U2 is greater than 100MΩ. |
| Mechanical parameters |
|---|
| Dimensions (W×D×H) (mm) | 185×85×41 |
| Weight (kg) | 0.26 |
| Environmental conditions |
|---|
| Working temperature | 0°C±40°C |
| Humidity | ≤80% |
| Accessory |
|---|
| Multi-function double clamp digital phase angle meter | 1 piece |
| Clamps 10A | 2 pieces |
| Clamp wire | 2 pieces |
| Voltage wire | 2 pieces |
| User's manual | 1 piece |
| Certification of quality | 1 piece |
| Box | 1 piece |
