NAMES: | Power & Energy Calibrator | APPLICATION: | TEST POWER METER & ENERGY METER |
---|---|---|---|
CLASS: | 0.02 OR 0.05 | FREQUENCY: | 40-70HZ |
U RANGE: | 0-500V | I RANGE: | 0-120A |
WEIGHT: | 25KG | LCD: | 7 Inch Color Touch Lcd |

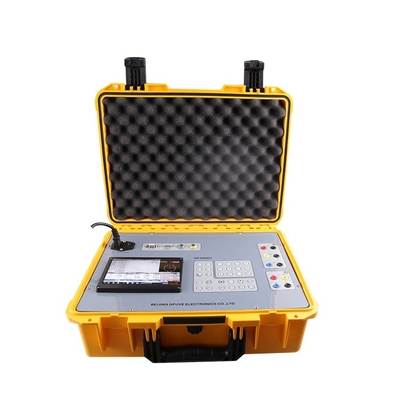

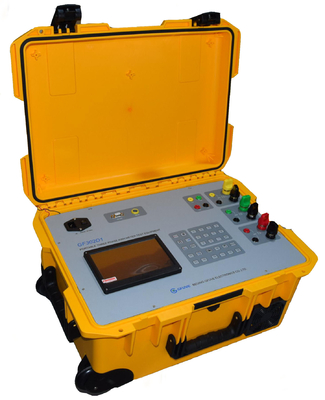

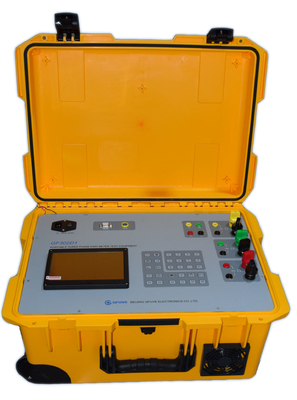

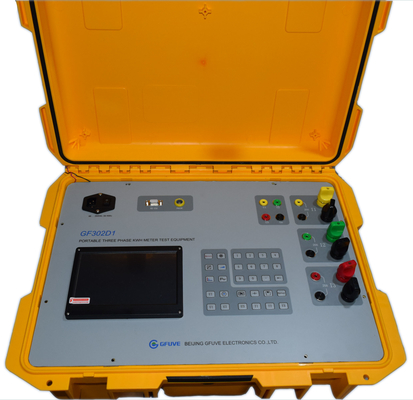

GF302D1 Portable Three Phase Power & Energy Calibrator
Three power phases in a single easy-to-use instrument. The GFUVE Calibration GF302D1 Three Phase Electrical Power Calibrator is the most cost-effective way to get the superior accuracy and performance of three independent phases in one instrument. It is an ideal solution for calibration laboratories, electronics manufacturers, electric utility meter shops, and other organizations that manufacture and maintain energy meters, power quality analyzers, and similar tools.
Three power phases in a single easy-to-use instrument
Three phases in a single instrument
Cost effective
Easy to use
Simulates dc or ac electrical power and energy in voltage range to 500 ac V and current range to120 A per phase
Phase shift between voltage and current channels can be set from 0° to 359.99°
Specifications of ± 375 ppm for power and 0.02° for phase
Current outputs can be isolated from ground by up to 500 V peak
Optional energy and power quality capabilities
Offers three phase high current adapter for applications needing from 1mA to 120 A of current
Accurate performance for the calibration laboratory
Until now, many engineers and technicians have been testing three-phase devices with a single-phase series-parallel technique, because the cost of available three-phase sources with acceptable accuracies has put true polyphase testing out of reach. With the GF302D1, these professionals can now afford three-phase performance, accuracy, and ease of use. More importantly, they can now test multi-phase meters in conditions that reflect their actual usage.
Along with providing three independent phases of precise voltage and current, the GF302D1 also sources power quality phenomena, including harmonics, interharmonics, flicker (modulation) and dip/swell variations.
The GF302D1 includes measurement capabilities for dc voltage, dc current and frequency for measuring outputs from power and energy transducers.
As a single instrument, the GF302D1 is easier to transport and takes up less space on the bench or cart than multi-piece units. The GF302D1 delivers all of this functionality with a graphical user interface that makes it remarkably easy to learn and use.
Versatile and convenient functionality for the manufacturing floor
The GF302D1 is a single-instrument solution for single or multi-phase sourcing applications, making it ideal for many applications within electronics manufacturing companies and electric utility meter shops.
Now you can efficiently conduct final verification of power transducers, current transformers, energy meters, and revenue meters using true multi-phase testing methods. Test and calibrate single and multi-phase power meters, power quality analyzers and energy meters.
Put the GF302D1 on a cart and wheel it easily around the factory floor to test workload in situ. The graphical user interface makes setup a snap; all three phases are readily available for verification testing.
Electrical parameters | |
---|---|
Accuracy | 0.02%, 0.05% |
Power Supply | One Phase AC 100-265V, frequency 50/60Hz. |
AC Voltage Output | |
Range(U1,U2,U3) | 57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional) |
Adjustment range | (0-120)%RG(1) |
Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
Stability | 0.01%/120s |
Distortion | 0.3% (Non-capacitive load) |
Output load | each phase 25VA |
Measuring accuracy | 0.02%RG |
AC Current Output | |
Range(I1,I2,I3) | 200mA, 1A, 5A, 20A, 100A |
Adjustment range | (0-120)%RG |
Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
Stability | <0.01%/120s |
Distortion | ≤0.3% (Non-capacitive load) |
Output load | 50VA |
Accuracy | 0.02%RG |
Power Output | |
Active power output stability | <0.01%RG/120s |
Reactive power output stability | <0.02%RG/120s |
Active power measuring accuracy | 0.02%RG |
Reactive power measuring accuracy | 0.1%RG |
Phase Output | |
Output adjustment range | 0°-359.999° |
Output adjustment fineness | 10, 1, 0.1, 0.01 as optional. |
Resolution | 0.01° |
Accuracy | 0.02° |
Power Factor | |
Adjustment range | -1 ~ 0 ~ 1 |
Resolution | 0.0001 |
Measurement accuracy | 0. 0005 |
Frequency Output | |
Adjustment range | 40Hz-70Hz |
Output adjustment fineness | 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional. |
Resolution | 0.001Hz |
Accuracy | 0.002Hz |
Voltage /Current/Harmonic Setting | |
Harmonic number | 2-51times |
Harmonic content | 0-40% |
Harmonic phase | 0-359.99 |
Harmonic setting accuracy | (10%±0.1%)RD(2) |
Power Energy Measurement Error | |
Active power energy | 0.02%RG |
Reactive power energy | 0.05%RG |
Power Pulse Output | |
Power pulse type | active pulse, reactive pulse |
Active power pulse output | 5V, 10mA |
Power Pulse Input | |
Energy pulse type | support active and reactive pulse, the highest frequency power pulse input is 180K. |
Mechanical parameters | |
Dimensions (W×D×H) (mm) | 500x600x175 |
Weight (kg) | About 25 |
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
