THREE PHASE PHANTOM LOAD ELECTRIC PORTABLE POWER SOURCE

China THREE PHASE PHANTOM LOAD ELECTRIC PORTABLE POWER SOURCE supplier

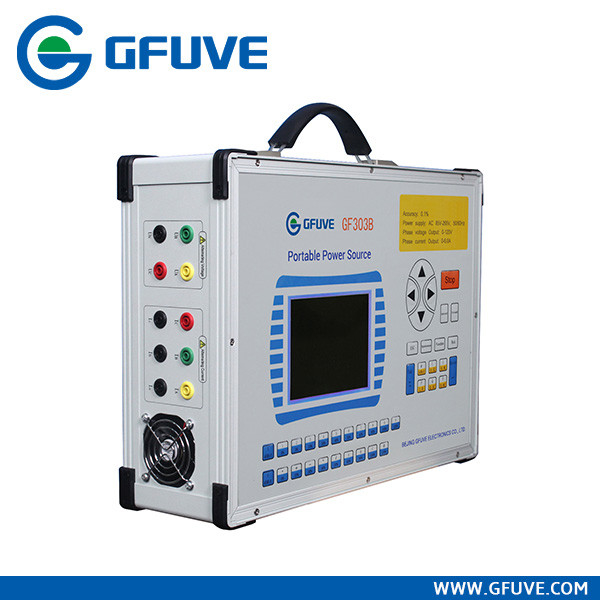

Large Image :  THREE PHASE PHANTOM LOAD ELECTRIC PORTABLE POWER SOURCE

Product Details:

Place of Origin: china
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: GF303B

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD6000-12000
Packaging Details: Standard export box
Delivery Time: within few working days(depends on your quantity)
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 200pcs/month
Contact Now
Detailed Product Description
Sample Price: Depending On The Customs Tariff Category: Power Meters
Accuracy: 0.1% Current Output: 0-6A
Voltage Output: 0-120V Frequency: 45-65Hz
Phase: 0-360.000

GF303B THREE PHASE PHANTOM LOAD ELECTRIC PORTABLE POWER SOURCE

It is suitable for all the power supply company, electric power company distribution network automation departments, is also suitable for petrochemical, coal mine, railway and steel industry etc, to power automation departments use.

FEATURES

  • Lightweight portable: the integrated module, weighing 6.8 kg;
  • The fastest output (10 ms): by high performance 32 bit CPU, the frequency of 1.2 G;
  • Stable fastest (1s): hardware PID, the output of the standard resource without delay, fast response;
  • With the strongest load, load regulation rate fast, single phase with resistance sex load 15 VA; with pure capacitive load (0.33 uf);
  • Harmonic supreme: standard device can output 2-63 times higher harmonic;
  • Stability, and the best, stability for 0.01% / min; English or Chinese display.
  • Two kinds of frequency output: but at the same time points in different frequency voltage output; And amplitude can adjust arbitrarily output;
  • Powerful Software, the operation is simple, convenient, three steps can complete verification;
  • Debugging far move communication protocols, as many as 20 types, covering domestic all factories statute;
  • The fastest verification;


PARAMETERS

Electrical parameters　
Accuracy class  0.05%, 0.1%
Power supply Single phase AC 85V-265V, 50/60 Hz
Communication Port RS232, USB
AC Voltage output　
Range (U1, U2, U3 phase) 0-140V;  (0-264V option)
Adjustment resolution 0.01%, 0.1%, 1%, 10%,
Accuracy 0.05% RG
Stability 0.01% RG / 1 min
Distortion degree Better than 0.1% (not capacitive load)
Load Capacity 15VA
Full load regulation rate 0.02% RG
Full load regulation time Less than 1mS
Temperature drift 16 PPM/°C
Long-term stability 60 PPM/year
AC Current output　
Range (I1, I2, I3 phase) 0-6A
Adjustment resolution 0.01%, 0.1%, 1%, 10%,
Accuracy 0.05% RG
Stability 0.01% RG/1min
Distortion degree Better than 0.1% (not capacitive load)
Load capacity 15VA
Full load regulation rate 0.02% RG
Full load regulation time Less than 1mS
Temperature drift 16 PPM/°C
Long-term stability 60 PPM/year
Power output　
Active power accuracy 0.05%
Reactive power accuracy 0.1%
Stability 0.01% RG/1min
Phase　
Range 0°-359.99°
Adjustment resolution 0.01°, 0.1°, 1°, 10°
Accuracy 0.05°
Power factor  　
Adjusting range -1 ~ 0 ~ + 1
Resolution 0.0001
Accuracy 0.0005
Frequency　
Range 40-65 Hz
Adjustment resolution 0.001 Hz, 0.01 Hz, 0.1 Hz, 1Hz
Accuracy 0.002 Hz
Temperature drift 0.5 PPM/°C
Long-term stability 4 PPM/year
Harmonic content (compared with fundamental wave)
Voltage ≤40%
Current ≤40%
Phase 0°-360°
Harmonic　
Harmonic times 2-63
Adjustment resolution 0.1% (compared with fundamental wave)
Mechanical parameters　
Dimensions (W×D×H) (mm) 300x400x120
Weight (kg) 6.8
Environmental conditions　
Working  temperature 0°C  to 40°C
Storage conditions -30°C  to 60°C
Relative humidity ≤85%
