6 current 6 voltage relay test current injection relay test set

China 6 current 6 voltage relay test current injection relay test set supplier
6 current 6 voltage relay test current injection relay test set supplier 6 current 6 voltage relay test current injection relay test set supplier 6 current 6 voltage relay test current injection relay test set supplier 6 current 6 voltage relay test current injection relay test set supplier 6 current 6 voltage relay test current injection relay test set supplier 6 current 6 voltage relay test current injection relay test set supplier

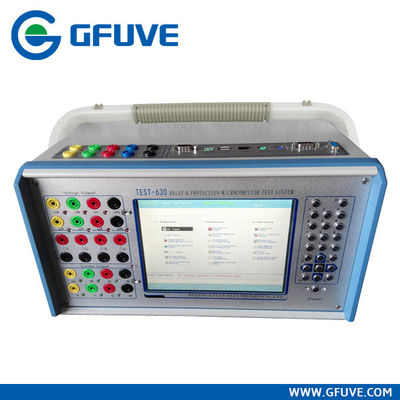

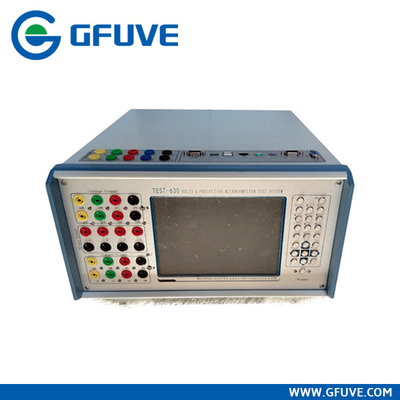

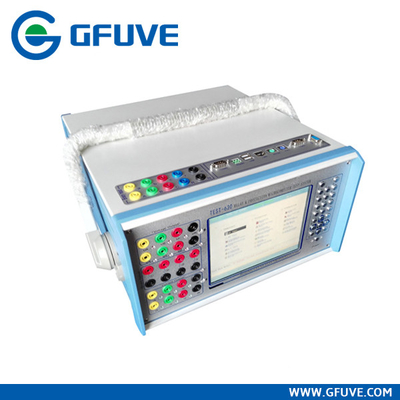

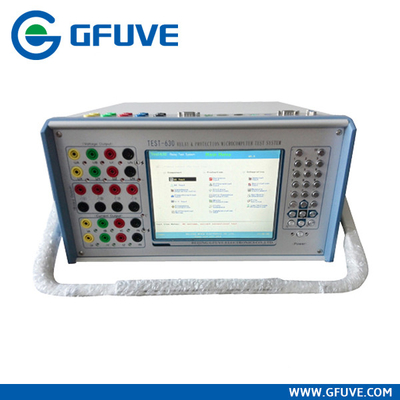

Large Image :  6 current 6 voltage relay test current injection relay test set

Product Details:

Place of Origin: Beijing, China (Mainland)
Brand Name: GFUVE
Certification: CE, ISO9001
Model Number: TEST-630

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: US $3,000-8,500 / Set
Packaging Details: Standard export wooden box
Supply Ability: 300 Set/Sets per Month
Contact Now
Detailed Product Description
Usage:: Automotive Relay Tester Kit Weight (kg):: 16.6

SIX PHASE electrical relay test equipment
Test-630 is a six phase current output and six phase voltage output protection relay tester with 5.Eight pairs of binary input and four pairs of binary output

OVERVIEW

  • Six-channel current output
  • Six-channel voltage output
  • Eight pairs of binary input
  • Four pairs of binary output
6 current 6 voltage relay test current injection relay test set6 current 6 voltage relay test current injection relay test set6 current 6 voltage relay test current injection relay test set
Features



  • Integration in the host crystal 8.4 inches true color, light weight and easy to carry.
  • Built-in high-speed and high-performance industrial computer embedded operating system, running stable and reliable, also can test by connecting PC.
  • Panel embedded user-friendly buttons, and the panel can also be an external keyboard and mouse.
  • High-precision DAC to 12 Road, simultaneously output to ensure the high precision and good linearity of the waveform.
  • 5Matching electromagnetic compatibility components, can improve on-site anti-electromagnetic interference, protection devices can connect the electromagnetic compatibility to test.
  • Analog output of the front panel, switch the amount of terminal design in the upper cover, all the wiring does not affect the operation of the panels and the test parameters of the surveillance.
  • The latest thermal structure design to ensure the best ventilation. Automatically determine over current, over voltage, overload and short circuit, if the temperature is too high, the anomalies and misuse warning of the data will show up promptly.
  • Using voltage, current amplifier AC / DC sharing, output stage uses a unique ultra-linear amplifier technology, high precision and reliability. six-phase AC output voltage and six-phase AC current.
  • 12 analog ports and other optional auxiliary DC source output (220V/110V).

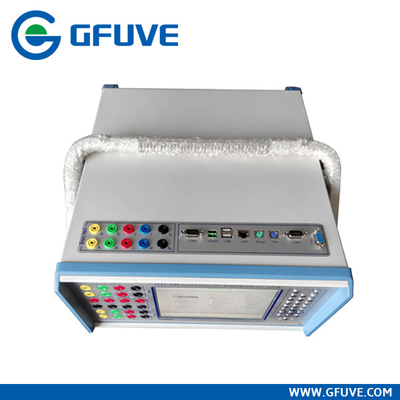

  • Interface: RJ45 (Ethernet interface), USB interface (software upgrades, reporting transmission), industrial serial interface (GPS or other serial device use).
Parameters



Electrical parameters
Allowable rangeAC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement0.1ms-999999.999s
AC current output
Phase current output (effective value)6×0-30A or 3 × 0-60A
Maximum output power520VA/phase
Maximum parallel current output (effective value)0-180A
Long-term allowable working value of phase current (effective value)>10A
Allowable working time of maximum current>11s
Accuracy<±0.2%
AC voltage output
Phase voltage output (effective value)6×0-130V
Line voltage output (effective value)0-260V
Maximum output power70VA/phase
Accuracy<±0.2%
DC voltage output
Output range0-300V or 6×0-±130V
Maximum output power130VA
Accuracy<±0.2%
DC current output
Output range-10-10A or 6×0-±10A
Maximum output power150VA
Accuracy<±0.2%
Binary input
Idle contact1-20mA, 24V (DC)
Electric potential contact0-250V (DC)
Binary output
Idle contact250V/0.5A (DC)
Rated output
Frequency error<±0.01HzHz
Phase error<±0. 2°
Waveform distortion<±0.3% (fundamental wave)
Time error<40µs
Output frequency0-1050Hz
Superposed harmonic wave0-21times
Time measurement
Test range0.1ms-999999.999s
Mechanical parameters
Dimensions (L×W×H) (mm)360×195×365
Weight (kg)16.6
Environmental conditions
Use range0°C to 45°C
Storage range-25°C to 70°C
Certifications

6 current 6 voltage relay test current injection relay test set

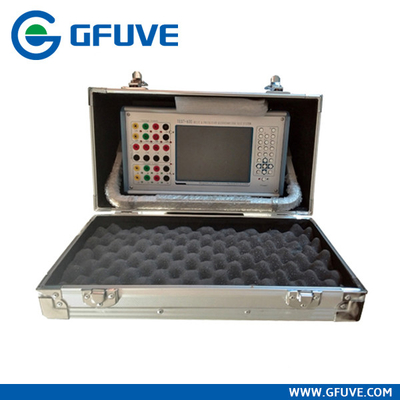

Packaging & Shipping
