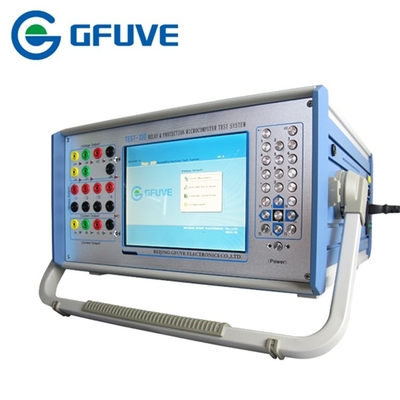

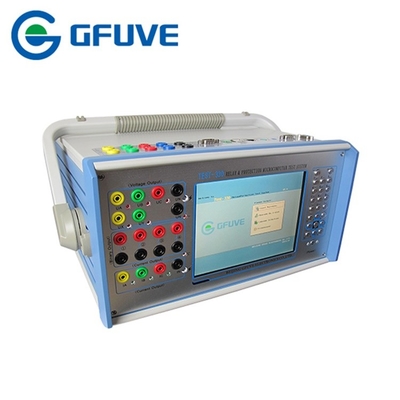

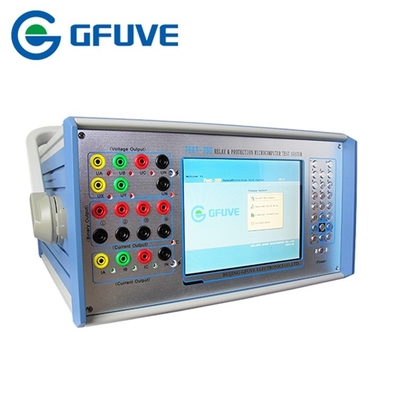

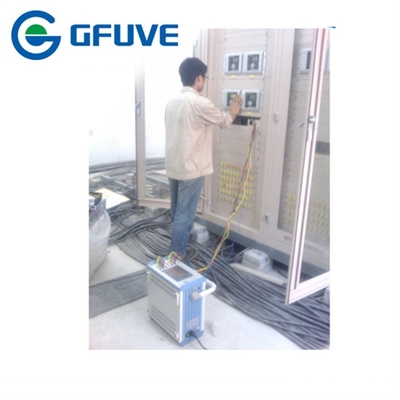

TEST-330B 90A 300V Portable 3 Phase Relay Protection Tester with Distance protection and Harmonic test
Test-330 Portable 3 Phase Relay Protection Tester is a three phase current output and five phase voltage output relay tester with embedded host machine equipped with Complex Programmable Logic Device. It can test all kinds of relay and protection device, for example differential protection and distance protections.
TEST-330 3 phase relay protection tester 3 phase 0.1 grade 1.AC current output: Accuracy 0.1 Grade Phase current output(effective value) 0~30A 3 phase current output(effective value) 0~90A Phase current long time working value(effective value) 10A Phase max current outpute power 260VA 3 phase max.
Relay Test Set, Protection Relays Tester, Protection Microcomputer Test manufacturer / supplier GFUVE in China, offering Three Phase Relay Protection Tester Secondary Current Injection Test Set, Customized AC/DC High Voltage Digital Meter High Voltage Divider, portable on-site AC test emergency pure sine wave power supply and so on.
AC current output |
Phase current output (effective value) |
3×0-30A |
Maximum output power |
260VA/phase |
|
Maximum parallel current output (effective value) |
0-90A |
|
Long-term allowable working value of phase current (effective value) |
>10A |
|
Allowable working time of maximum current |
>11s |
|
Accuracy |
<±0.2% |
|
AC voltage output |
Phase voltage output (effective value) |
5×0-130V |
Line voltage output (effective value) |
0-260V |
|
Maximum output power |
70VA/phase |
|
Accuracy |
<±0.2% |
|
DC voltage output |
Output range |
0-300V or 5×0- ±130V |
Maximum output power |
130VA |
|
Accuracy |
<±0.2% |
|
DC current output |
Output range |
-10-10A or 3×0- ± 10A |
Maximum output power |
200VA |
|
Accuracy |
<±0.2% |
|
Binary input |
Idle contact |
1-20mA, 24V (DC) |
Electric potential contact |
0-250V (DC) |
|
Binary output |
Idle contact |
250V/0.5A (DC) |
Rated output |
Frequency error |
<±0.01Hz |
Phase error |
<±0. 2° |
|
Waveform distortion |
<±0.3% (fundamental wave) |
|
Time error |
<40µs |
|
Output frequency |
0-1050Hz |
|
Superposed harmonic wave |
0-21times |
|
Power voltage |
Allowable range |
AC220V±10%, 50/60Hz±10% |
Ambient temperature |
Use range |
0-45℃ |
Storage range |
-25-70℃ |
|
Time measurement |
Test range |
0.1ms-999999.999s |
Exterior appearance of cabinet |
Imported electromagnetic compatible cabinet, which is made of high-grade all aluminum alloy extruded section and has fine appearance, is selected. Dimension of cabinet(L x W x H): 360mm ×195mm ×375mm |
|
Weight of cabinet |
Weight of host machine |
16.6kg |
Load-bearing output |
Selectable between light load or heavy load output (When any phase current output surpasses 15A, it is suggested to press key F3 before test of each functional module so as to switch to heavy load output mode) |
