Product Details:
Payment & Shipping Terms:
|
Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 | Rated Primary Current: | 50-600A |
---|---|---|---|
Rated Load: | ≤5VA | Rated Frequency: | 50Hz Or 60Hz |
Rated Secondary Current: | 5A Or 1A | Rated Short-time Thermal Current: | 40KA,1S |
Rated Dynamic Current: | 63kA | Rated Insulation Level: | 12/42/75KV |
FS: | ≤10 | Material: | Epoxy Resin |
Weight (kg): | 9 |

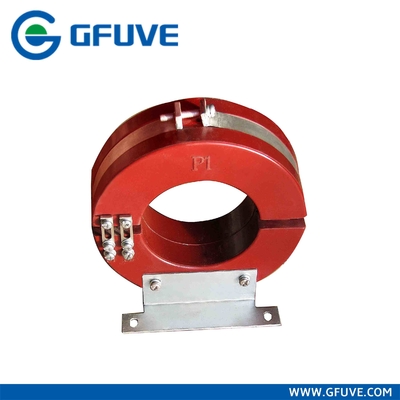

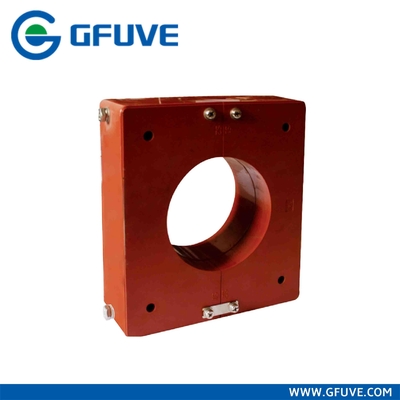

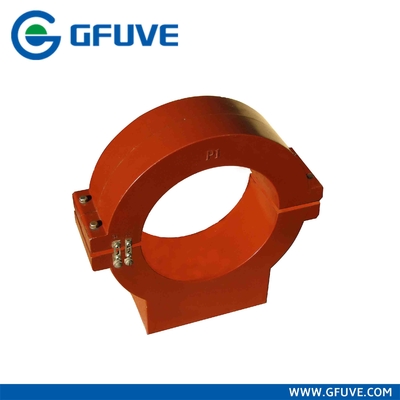

GFLXZK0311-Φ120 Medium and High Voltage 50-600A Zero Sequence Current Transformer High Permeability Core High Accuracy
1. Adopted high permeability core, high accuracy, excellent linear performance
2. Whole enclosed case, with high function of current isolation and nice outline
3. Mini size, little weight, pin type and easy to put into PCB
4. Linear output with high accuracy current
5. DC Immunity function
Application
Single and multi-phase electronic energy meters
