Rated Load: | ≤10VA | Standards: | IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13 |
---|---|---|---|
Range Of Primary Rated Current: | 100-1000A | Accuracy Class: | 0.5S, 0.5%, 1%, 3% (IEC61869 Standard) |
Rated Frequency: | 50/60Hz | Rated Secondary Current: | 5A Or 1A |
Rated Short-time Thermal Current: | 40kA, 1S | Rated Continuous Thermal Current: | 150%I1n |
Weight (kg): | 1.5 | Safety Factor Rating: | (FS) <10 |
Voltage Sampler Range: | ≤720V | Insula: | E |

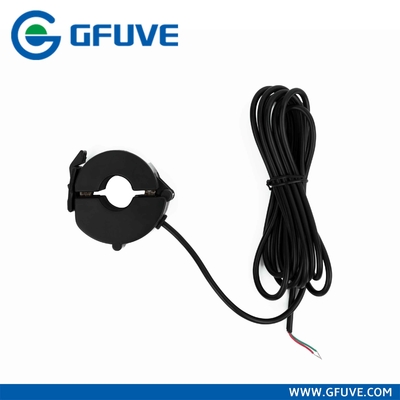

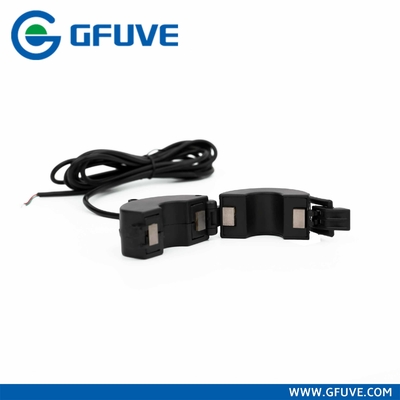

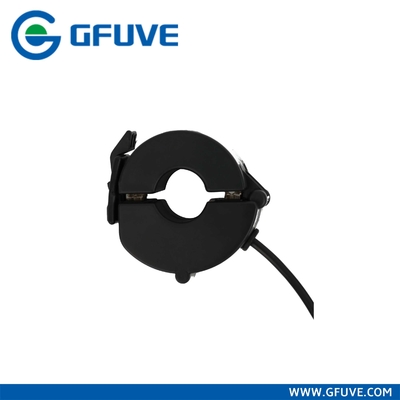

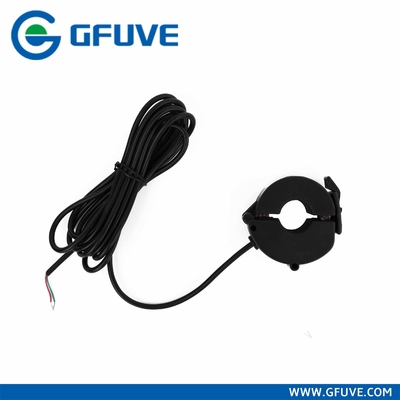

LVZCK-36 High Performance Split Core Outdoor Electrician ABS Epoxy Resin IP68 Current Transformers Accuracy Class 0.5S
The model LVZCK-36 Combination Transformer is consisting of high performance split core current transformer and voltage sampling sensor, and its material is made by electrician ABS and epoxy resin. Its ingress protection is designed in IP68. This Transformer is compatible with Distribution Transformer Monitor and provides high quality power parameter quality signal for the monitor to control, measure and monitor the energy quality and so on in grid system. This transformer has
features of high accuracy, fire-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc. It equipped outdoor cable assembly in bottom for transmitting the signal to transformer monitor. This transformer applies to the low voltage outdoor electric power
system with frequency 50Hz or 60Hz.
