Q20B BNC connector 20mm clamp on current transformer with 100A/100mA 0.1% measurment

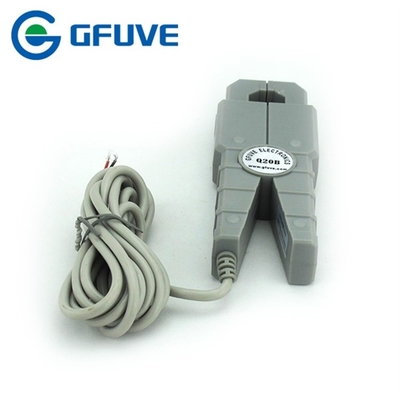

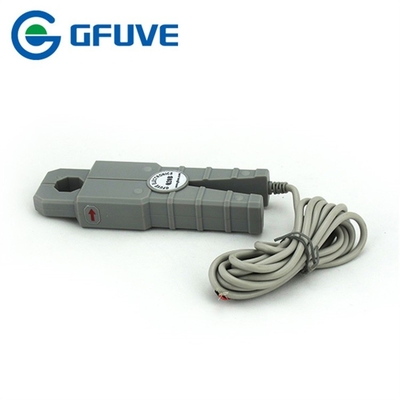

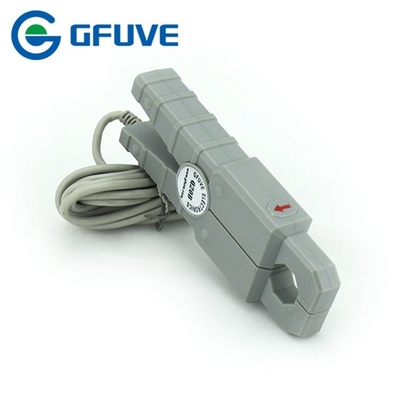

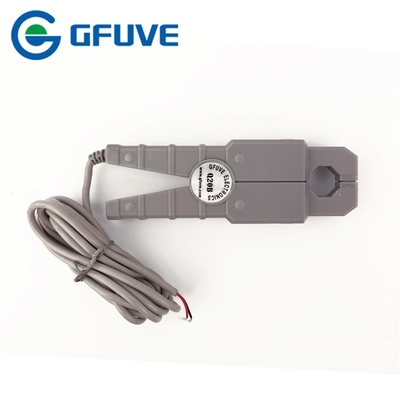

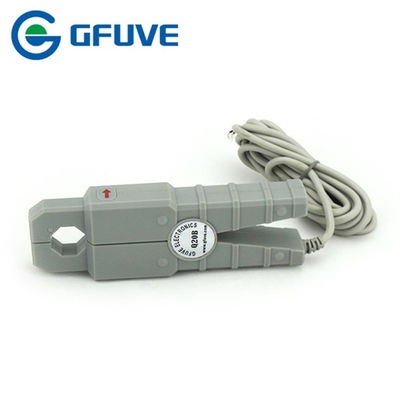

Large Image : Q20B BNC connector 20mm clamp on current transformer with 100A/100mA 0.1% measurment

Product Details:

Place of Origin:	Beijing China
Brand Name:	GFUVE
Certification:	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006
Model Number:	Q20B-100A

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	85USD
Packaging Details:	Standard export wooden box
Delivery Time:	3days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs/mon

Contact Now

Detailed Product Description

Names:	Clamp On Current Transformer	Ratio:	1000: 1 Or 2000:1 (customized)
Accuracy Class:	0.1%, 0.2%	Primary Current:	0 - 100A AC
Secondary Current:	0 - 100mA AC, 0-1V, 0-100mv (customized)	Max. Cont. Input Current:	120A
Frequency Range:	40Hz-2MHz	Temperature Range:	-20°C To +55°C
Dimensions (L X W X H) (mm):	45 X 160 X 25	Weight (g):	350
Holding Wire Diameter (mm):	φ20	Max. Jaw Opening (mm):	20

Q20B BNC connector 20mm clamp on current transformer with 100A/100mA 0.1% measurment

The Q20B clamp on current transformer is a high accuracy mini probe for measurements to 120A AC. This current transformer uses a special magnetic core to provide higher accuracy and lower phase shift. The Q20B Series is an excellent probe to be used in power and low level current measurement applications.

Small and compact, the AC Current Probe Model Q20B clamp current transformer is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
With its two ranges, it offers excellent resolution for measuring AC intensities from 1mA to 100A.

Applications

Power quality measuring
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator
Measuring in breaker panels
HVAC
Residential and commercial sites
Data logging/recording

Features

Measurement range of 1mA to 120A AC
Improved ergonomic design and easy operation
High content nickel metal core
Low phase shift for power measurement
Small, compact size
Jaw opening accommodates conductors up to 20mm diameter
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 2MHz response
1mA/A AC output signals
Designed to EN 61010, 600V CAT III safety standard
UL, CE mark

Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC or 0 - 200mV AC (customized)
Max. Cont. Input current	240A
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 200mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	From 0 to 200mV AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	56 x 168 x 27
Weight (g)	350
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
Color	Gray
Material	PC+ABS+Polycarbonate, UL94 V0

SELECTION GUIDE

Model	Rate Current	Max Current	Secondary Current	Coil Ratio	Burden Resistance	Accuracy
Q20B-10-1	10A	12A	10mA	1000:1	customized	0.1%
Q20B-10-2	10A	12A	5mA	2000:1	customized	0.1%
Q20B-20-1	20A	24A	20mA	1000:1	customized	0.1%
Q20B-20-2	20A	24A	10mA	2000:1	customized	0.1%
Q20B-100-1	100A	120A	100mA	1000:1	customized	0.1%
Q20B-100-2	100A	120A	50mA	2000:1	customized	0.1%
Q20B-200-1	200A	240A	200mA	1000:1	customized	0.1%
Q20B-200-2	200A	240A	100mA	2000:1	customized	0.1%
Q20B-10-12	10A	12A	10mA	1000:1	customized	0.2%
Q20B-10-22	10A	12A	5mA	2000:1	customized	0.2%
Q20B-20-12	20A	24A	20mA	1000:1	customized	0.2%
Q20B-20-22	20A	24A	10mA	2000:1	customized	0.2%
Q20B-100-12	100A	120A	100mA	1000:1	customized	0.2%
Q20B-100-22	100A	120A	50mA	2000:1	customized	0.2%
Q20B-200-12	200A	240A	200mA	1000:1	customized	0.2%
Q20B-200-22	200A	240A	100mA	2000:1	customized	0.2%
