GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection supplier

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection supplier

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection supplier

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection supplier

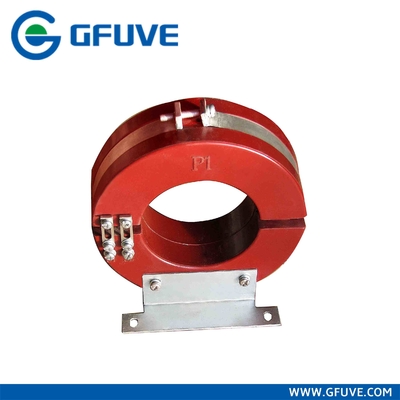

Large Image : GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	GFLXZK0111- Ф80

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Primary Current:	50-600A
Rated Load:	≤5VA	Rated Frequency:	50Hz Or 60Hz
Rated Secondary Current:	5A Or 1A	Rated Short-time Thermal Current:	40KA,1S
Rated Dynamic Current:	63kA	Rated Insulation Level:	12/42/75KV
FS:	≤10	Material:	Epoxy Resin
Weight (kg):	7

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

1. Adopted high permeability core, high accuracy, excellent linear performance

2. Whole enclosed case, with high function of current isolation and nice outline

3. Mini size, little weight, pin type and easy to put into PCB

4. Linear output with high accuracy current

5. DC Immunity function

Application

Single and multi-phase electronic energy meters

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection

GFLXZK0111- Ф80 Medium and High Voltage 50-600A Zero Sequence Current Transformer Industrial Power System Protection
