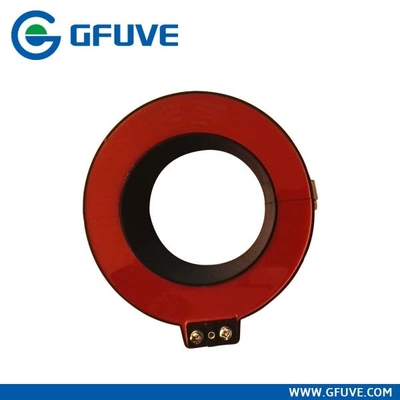

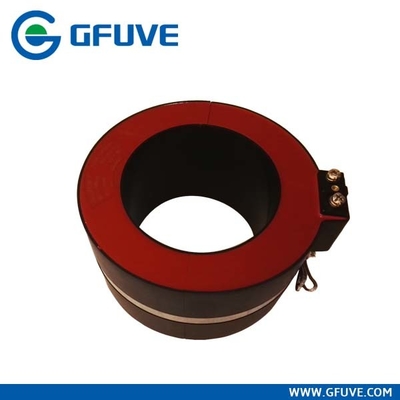

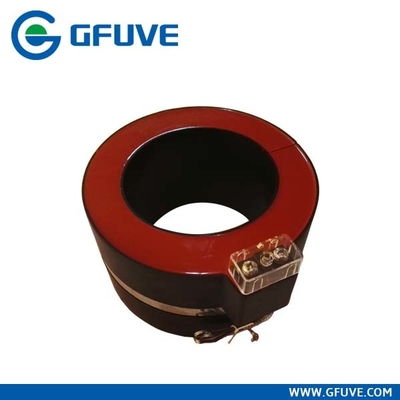

10KV 35KV Split Core Current Transformer Outdoors Accuracy 0.5 500-1500A insulated resin
LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.
It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes.
The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
OUTLINE DRAWING
WIRING DIAGRAMS
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
PARAMETERS
| Technical parameters |
| Standards |
IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006 |
| Rated primary current |
500-1500A |
| Rated load |
≤20VA |
| Rated frequency |
50Hz or 60Hz |
| Rated secondary current |
5A or 1A |
| Rated short-time thermal current |
40kA, 1S |
| Rated continuous thermal current |
120%I1n |
| Secondary winding power-frequency voltage |
3kV, 1min |
| Instrument security factor |
FS≤10 |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
φ120xφ185x100 |
| Weight (kg) |
7 |
| Operating conditions |
| Operating temperature |
-35°C to +55°C |
| Daily average temp |
<+40°C |
| Storage temperature |
-40°C to +70°C |
| Altitude |
<3500 meters |
| Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
SELECTION GUIDE
| Type |
LZCK2500-10 |
LZCK2500-10 |
| Purpose |
Measuring current transformer |
Protection current transformer |
| Ratio |
Accuracy class and rated load(VA) |
Accuracy class and rated load(VA) |
| I1/I2 |
0.5 |
1 |
3 |
10P15 |
10P10 |
10P5 |
| 300/5 |
5 |
5 |
5 |
2.5 |
5 |
7.5 |
| 400/5 |
5 |
5 |
5 |
2.5 |
5 |
7.5 |
| 500/5 |
5 |
7.5 |
7.5 |
5 |
7.5 |
10 |
| 600/5 |
5 |
7.5 |
7.5 |
5 |
7.5 |
10 |
| 800/5 |
10 |
10 |
10 |
5 |
10 |
15 |
| 1000/5 |
10 |
15 |
15 |
5 |
10 |
15 |
| 1200/5 |
15 |
20 |
20 |
10 |
15 |
20 |
| 1500/5 |
15 |
20 |
20 |
10 |
15 |
20 |
SELECTION GUIDE
| Model |
Primary rated current |
Rated load |
Aperture (mm) |
Description (mm) |
Weight (kg) |
Material |
Water-proof |
| LZCK-55 |
100-1500A |
≤10VA |
φ55 |
180×138×52 |
2 |
ABS+Resin |
IP65 |
| LMCK185-10 |
300-3000A |
≤25VA |
φ185 |
350×283×55 |
4.5 |
ABS+Resin |
IP65 |
| LZCK310-10 |
300-600A |
≤10VA |
φ50 |
φ50 x φ110 x 32 |
1 |
Resin |
silicon case (option) |
| LZCK322-10 |
30-600A |
≤10VA |
φ50 |
φ50 x φ110 x 52 |
1.6 |
Resin |
silicon case (option) |
| LZCK350-10 |
20-600A |
≤25VA |
φ50 |
φ50 x φ110 x 105 |
3.1 |
Resin |
silicon case (option) |
| LZCK720-10 |
20-1000A |
≤25VA |
φ60 |
φ80 x φ110 x 50 |
2.1 |
Resin |
silicon case (option) |
| LZCK2500-10 |
500-1500A |
≤20VA |
φ120 |
φ120 x φ185 x 100 |
7 |
Resin |
silicon case (option) |
| LZCG530-10 |
30-600A |
≤20VA |
φ45 |
φ45 x φ120 x 65 |
2.1 |
Resin |
silicon case (option) |
| LZCG930-10 |
100-1500A |
≤25VA |
φ60 |
φ60 x φ155 x 60 |
3.6 |
Resin |
silicon case (option) |
| LZCT722-10 |
20-600A |
≤10VA |
φ82 |
φ82 x φ130 x 55 |
2.3 |
Resin |
silicon case (option)
|
ORDERING INFORMATION
be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.All kinds of different specifications and parameters current transformers can be made according to your needs.
