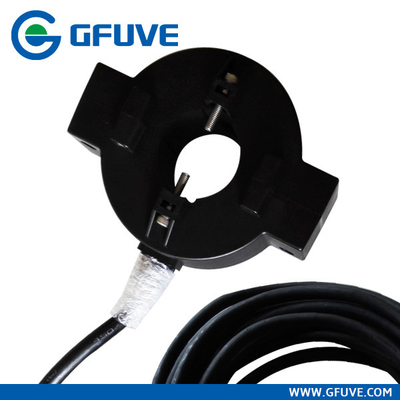

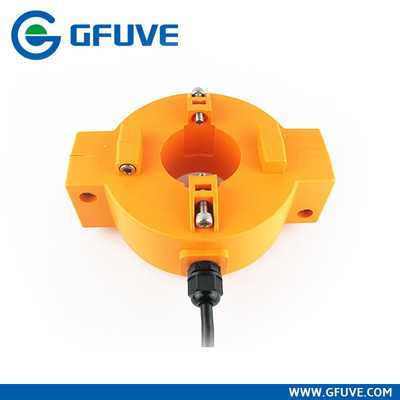

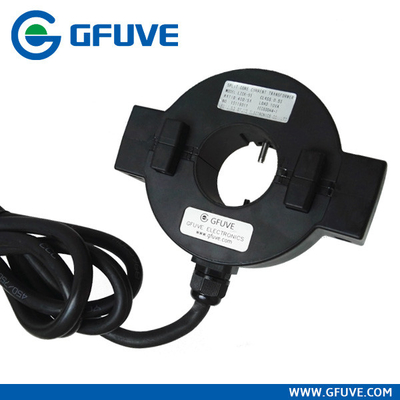

Outdoors Split Core Accuracy Class 0.5S 100-1500A Water-proof IP65 Current Transformer
-
-
Large Image :
Outdoors Split Core Accuracy Class 0.5S 100-1500A Water-proof IP65 Current Transformer
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Model Number: |
LZCK-55 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3 pieces |
| Price: |
USD 70 / piece |
| Packaging Details: |
standard export carton |
| Delivery Time: |
within 7 days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
100000 pieces per month |
|
Detailed Product Description
| Standards: |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
Accuracy Class: |
0.5S, 0.5%, 1%, 3% |
| Range Of Primary Rated Current: |
100-1500A |
Range Of Rated Load: |
≤10VA |
| Rated Frequency: |
50/60Hz |
Rated Secondary Current: |
5A Or 1A |
| Rated Short-time Thermal Current: |
40kA, 1S |
Rated Continuous Thermal Current: |
150%I1n |
Outdoors Split Core Accuracy Class 0.5S 100-1500A Water-proof IP65 Current Transformer
LZCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection.
This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
| Standards |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006;
ANSI C57.13 |
| Accuracy Class |
0.5S, 0.5%, 1%, 3% |
| Range of primary rated current |
100-1500A |
