Q20B High Performance Openable Jaw AC Current Clamp On Cts are best-in-class devices for use with power meters
Detailed Product Description
| Q20B: |
AC Current Clamp On Cts |
Accuracy Class: |
0.1%, 0.2%, 0.5% |
| Primary Current: |
0 - 200A AC |
Secondary Current: |
0 - 200mA AC Or 0 - 200mV AC (customized) |
| Max. Cont. Input Current: |
240A |
Frequency Range: |
40Hz-2000Hz |
| Dielectric Strength: |
3KV 50Hz/60Hz At 1 Minute |
Temperature Range: |
-20°C To +55°C |
| Output: |
2.5 Meter Cable With D01 Connector |
Dimensions (L X W X H) (mm): |
56 X 168 X 27 |
| Weight (g): |
350 |
Color: |
Gray |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

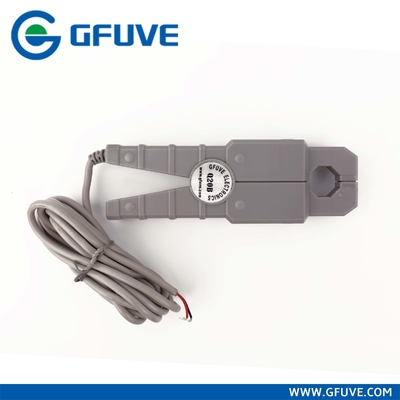

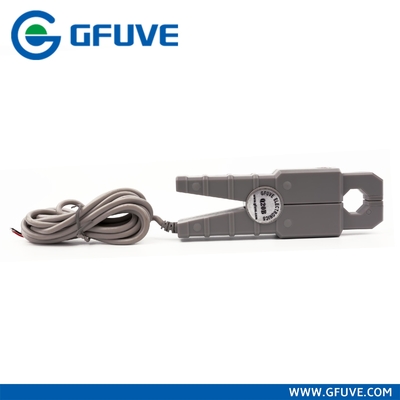

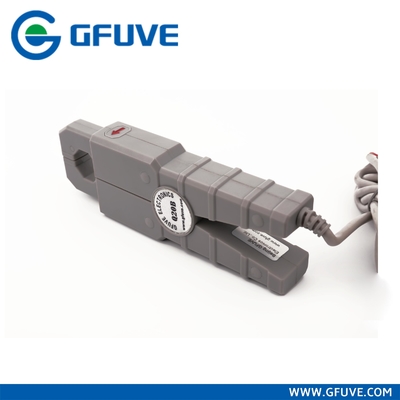

Q20B 100A High performance split core AC current clamp on cts
