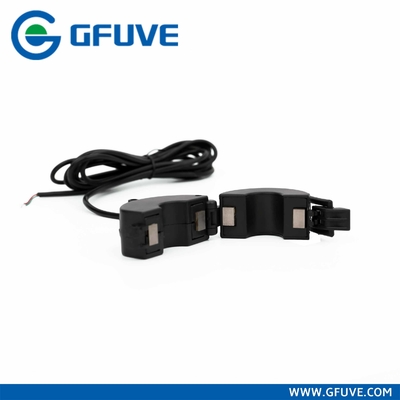

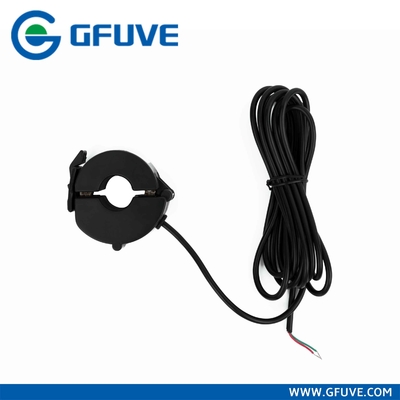

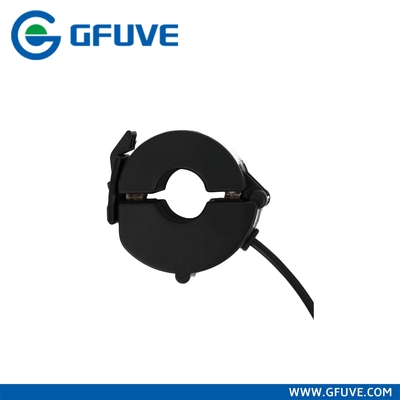

FU-16 SPLIT CORE CURRENT TRANSFORMER FOR ENERGY METER
FU-16 series of split-core current transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.
Features 1. Most cost-effective 2. Faster installation 3. Safe and easy installations 4. High accuracy 0.5 5. Holding wire diameter: φ16mm 6. Measurement range of 1mA to 200A AC
7. Low phase shift for power measurement 8. Output model: Lead output(2.5m) 9. Isolated plastic case recognized according to UL94-V0 10. Small-size, compact size, light-weight 11. Over-Voltage protection circuit is installed. 12. UL / EN 61010 - 1 certified
Applications 1. Power meter and harmonic meters 2. Energy meter (kWh meter) 3. Recorders, loggers, oscilloscopes 4. Power quality monitoring 5. Switchgear 6. Distributed measurement systems 7. General Sets 8. Control panels
Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
Parameters
| Electrical parameters |
| Standards |
IEC/EN60044-1 & IEC61010-1 & IEC61869-2 |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Nominal input current(Primary current) |
20 A/30A/40A/50A/60A/80A/100A/150A/200A |
| Overload withstand |
1.2 times rated current continuously |
| Accuracy class |
0.2%, 0.5 %, 1% |
| System Voltage |
720V(0.72kV) |
| Output signal |
10mA-200mA AC optional 333mV AC or 100mV-2V optional |
| Frequency range |
40 Hz-500 Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Protection Level |
3.0V0-P |
| Output |
Standard 2.5 meter cable |
| Installation Category |
CATⅡ or CATⅢ 600VAC |
| Max. jaw opening |
16 mm |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
38mm x 55mm x 18 mm |
| Weight (g) |
60 |
| Operating conditions |
| Operating temperature |
-25 to +55°C |
| Relative Humidity |
0-85% non-condensing |
| Altitude |
<3500 meters |
| Condition |
No existence of severely begrimed, erosive and radioactive gas
in the air. Permission of long-term operation under rated current. |
