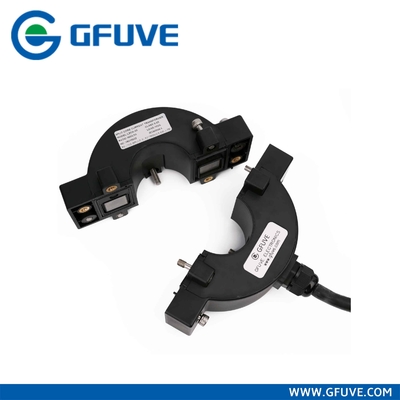

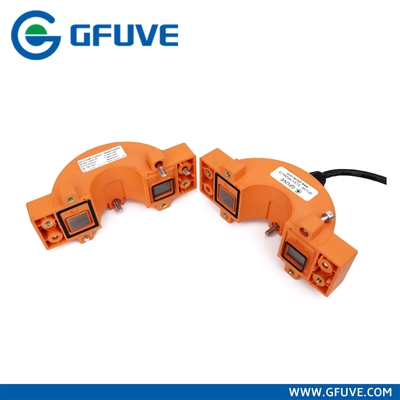

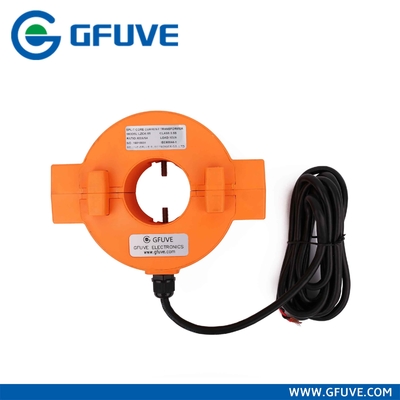

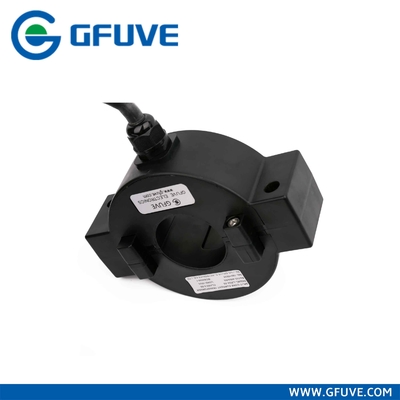

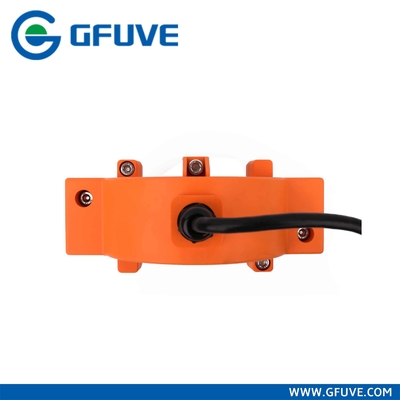

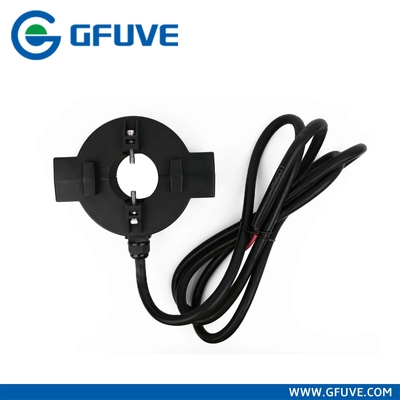

Hot LZCK-55 Global wholesale Magnetic Material Clamp Outdoor Waterproof Split Core Current Transformer
Detailed Product Description
| Accuracy Class: |
0.5S, 0.5%, 1%, 3% |
Range Of Primary Rated Current: |
100-1500A |
| Range Of Rated Load: |
≤10VA |
Rated Frequency: |
50/60Hz |
| Rated Secondary Current: |
5A Or 1A |
Safety Factor Rating: |
(FS) <10 |
| Output Signal: |
1A, 5A, 333mV, 1V Or 5V(customized) |
Cable Length: |
2.5m, 5m, 10m(customized) |
| Aperture (mm): |
Φ55 |
Dimensions (W×D×H) (mm): |
180×138×52 |
| Weight (kg): |
2 |
LZCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
