Rated Primary Current: | 30-1000A | Rated Load: | ≤30VA |
---|---|---|---|
Rated Secondary Current: | 5A Or 1A | Rated Short-time Thermal Current: | 40kA, 1S |
RateInstrument Security Factord Continuous Thermal Current: | 120%I1n | Dimensions (W×D×H) (mm): | φ60xφ155x60 |
Weight (kg): | 3.6 | Operating Temperature: | -35°C To +55°C |
Altitude: | <3500 Meters | Storage Temperature: | -40°C To +70°C |
Product description

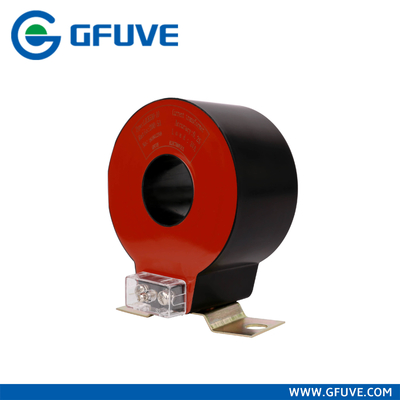

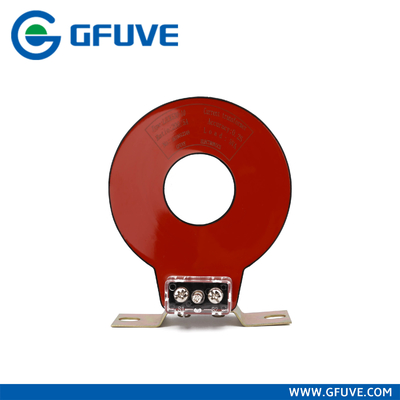

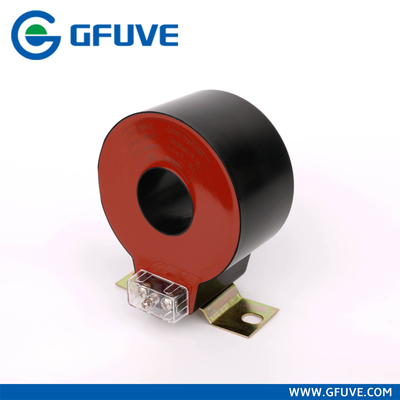

LZCG930-10 Cast Resin Straight-Through Current Transformer
General description:
LZCG series Cast Resin Straight-Through Current Transformer is suitable for current measurement and
microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus, Unstitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10, Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, operable and convenient installation. It is very convenient that the transformer can
be directly installed at the inlet and outlet cables. New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher. The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly. The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.
Model meaning:
Outline drawing:
Wiring diagrams:
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
Parameters:
Technical parameters | |
Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13 |
Rated primary current | 30-1000A |
Rated load | ≤30VA |
Rated frequency | 50Hz or 60Hz |
Rated secondary current | 5A or 1A |
Rated short-time thermal current | 40kA, 1S |
Rated continuous thermal current | 120%I1n |
Secondary winding power-frequency voltage | 3kV, 1min |
Instrument security factor | FS ≤10 |
Mechanical parameters | |
Dimensions (W×D×H) (mm) | φ60xφ155x60 |
Weight (kg) | 3.6 |
Operating conditions | |
Operating temperature | -35°C to +55°C |
Daily average temp | <+40°C |
Storage temperature | -40°C to +70°C |
Altitude | <3500 meters |
Operating conditions - continued | |
Condition | No existence of severely begrimed, erosive and radioac�ve gas in the air. Permission of long-term operation under rated current. |
Ordering information:
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.
All kinds of different specifications and parameters current transformers can be made according to your needs.
