1000/1A SPLIT CORE AC CURENT TRANSFORMER CLAMP
-
-
Large Image :
1000/1A SPLIT CORE AC CURENT TRANSFORMER CLAMP
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
Q50 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD50---250 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
10000pcs/month |
|
Detailed Product Description
| CLASS: |
0.1, 0.2, 0.5 |
RATIO: |
1000A/1A, 1000/1mV, 1000A/5A, 200A/5A |

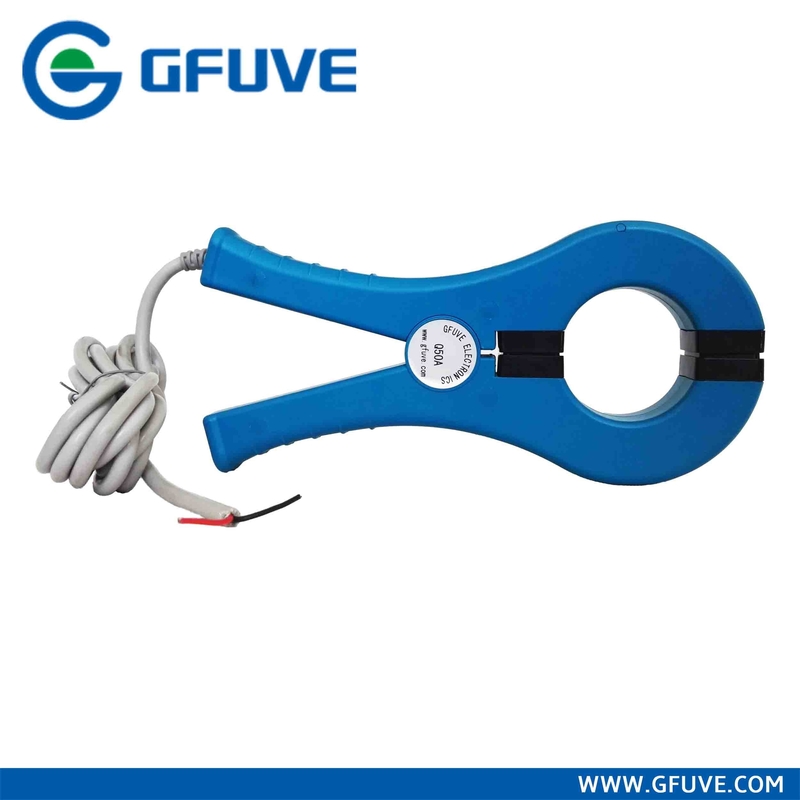

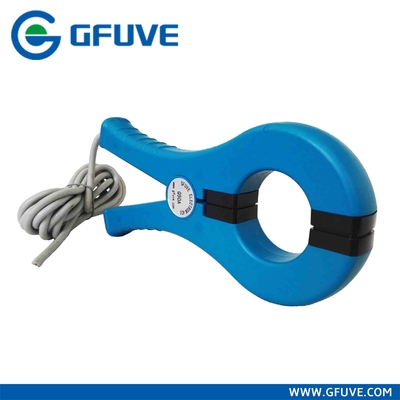

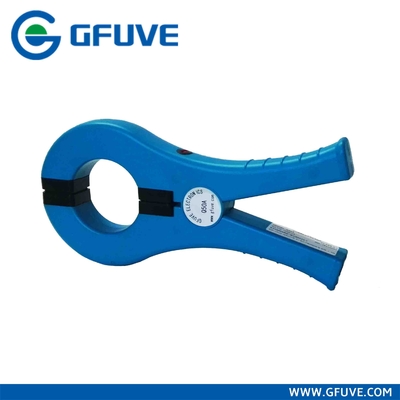

Q50 class 0.1 1000/1A SPLIT CORE AC CURENT TRANSFORMER CLAMP
The round jaw design on the Q50 Series AC current transformer clamp along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A.
The Q50 current transformer clamp is a general purpose 1000A AC current transformer clamp designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The Q50 has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.
APPLICATIONS
-
Power quality measuring
-
Large industrial loads
-
Measuring around cable bundles
-
Power load monitoring
-
Waveform analysis
-
Energy meter calibrator
FEATURES
-
Measurement range of 1mA to 1200A AC
-
Large jaw opening accommodates conductors up to two 500kcmil
-
Improved ergonomic design and easy operation
-
High content nickel metal core
-
Conforms to EN 61010, 600V CAT III
-
Low phase shift for power measurement
-
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
-
UL, CE mark
PARAMETERS
|
Electrical parameters |
|
Ratio |
1000: 1 or 2000:1 (customized) |
|
Accuracy class |
0.1%, 0.2%, 0.5% |
|
Primary current |
0 - 1000A AC |
|
Secondary current |
1mV/A AC, 5mV/A or (customized) |
|
Max. Cont. Input current |
1200A |
|
Over voltage category |
CAT III 600V |
|
Output signal (AC current) |
333mV, 500mV,1V,2V,5V AC at nominal input current |
|
AC Accuracy(1000A Range) |
|
0-10A |
≤0.5% |
|
10-100 |
≤0.2% |
|
10-1200A |
≤0.1% |
|
AC Phase Shift(1000A Range) |
|
0-10A |
≤0.5° |
|
10-100 |
≤0.2° |
|
10-1200A |
≤0.1° |
|
Frequency range |
40Hz-2000Hz |
|
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
|
Temperature range |
-20°C to +55°C |
|
Output |
2.5 meter cable with D01 connector |
|
Max. voltage not insulated conductors |
600 V |
|
Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
|
Installation |
Clamp type |
|
Output mode |
Lead output (2.5m) |
|

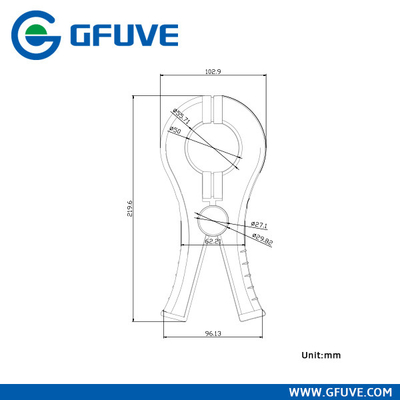

Mechanical parameters |
|
Dimensions (L x W x H)(mm) |
102.9 x 219.6 x 28 |
|
Weight (g) |
550 |
|
Holding wire diameter (mm) |
φ50 |
|
Max. jaw opening (mm) |
50 |
|
Color |
Gray or blue |
|
Material |
PC+ABS+Polycarbonate, UL94 V0 |
