LZCK-55 Current transformer split core outdoor IP67 200/5a 0.5s 5m cable for Distribution transformer monitoring
Split-Core Current Transformers GFUVE® maintains a large in-stock inventory of Split-Core Current Transformers, including Metering Class, Multi-Ratio, Relay Class and Rogowski Coils for most common applications. Below is a list of all split-core current transformers available through split-Core, however, not all models are in-stock.
The split core current transformer is designed for electrical metering applications specifically designed to be installed around primary current-carrying conductors without disconnecting wires or breaking the monitoring circuit. These current transformers are the best solution for applications in energy measurement and management.
GFUVE's 200A split core current transformer 0.5s is engineered for electronic metering applications specifically designed to install around primary conductors without disconnecting wires or breaking the circuit to be monitored. These IP67 current transformers are perfect solutions for energy management applications , Distribution transformer monitoring and manufactured for easy installation.

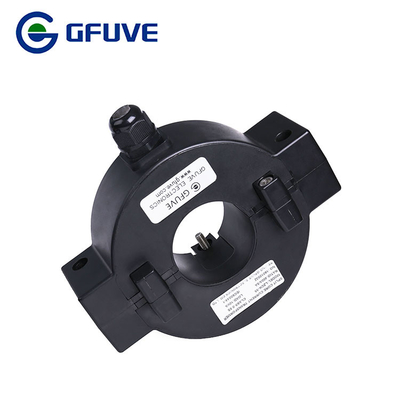

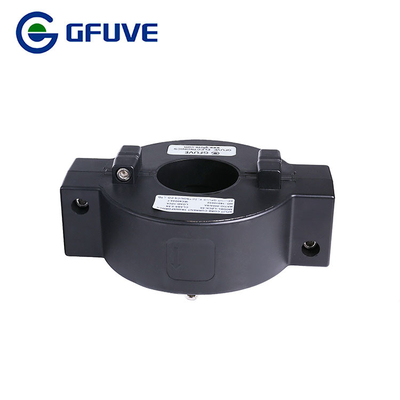

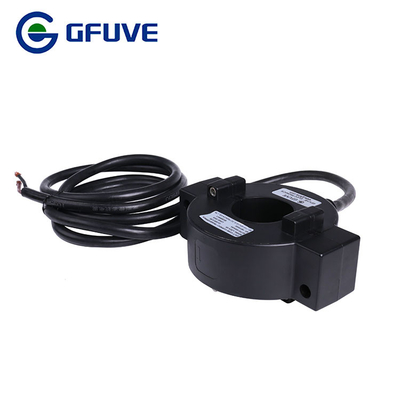

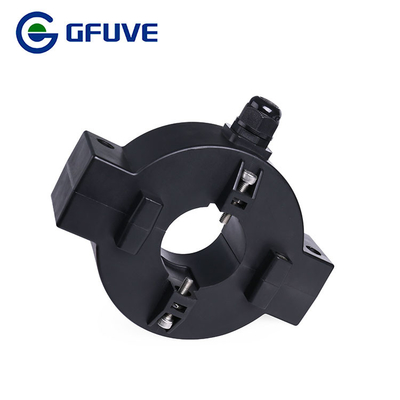

LZCK-55 IP68 Rated Current Transformers Weatherproof Construction Split Core.
The Model LZCK-55 is GFUVE rated IP68 rated split-core current transformer that use noncorrosive nickel core.
The standard split-core model is hinged for easy installation on ground potential conductors.
The LZCK-55 is potted to meet both GFUVE Type 6P and IP68W standards for outdoor use.
For measuring ground wire currents.
UL Listed per UL2808 .
Weatherproof GFUVE Type 6P/ IP68W.
Non-corrosive nickel core.
Accuracy Class 0.5s Standard.
Custom made to order available.
35’ sheathed lead wires standard .
Specifications
Input Current: 100A or 200 AC current, sine wave, single phase 50/60Hz.
Voltage Rating: 600VAC.
Output Voltage: 333 mV.
Output current: 5A or 1A
Standard Accuracy: Class 1.0 (+/- 1%).
Phase Displacement: Less than 60min. (1°).
Output Resistance: 200Ω max.
Temperature Range: -20°C to 55°C .
Rating Factor: 1 X at 55°C.
Lead Wires: 35ft. twisted black/white sheathed, 16AWG per UL1015
Application
Distribution transformer monitoring
Energy meter measurement current
Split core current sensor
Protecion Current transformer
Power monitoring
PARAMETERS
| Technical parameters |
| Standards |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Accuracy Class |
0.5S, 0.5%, 1%, 3% |
| Range of primary rated current |
100-1000A |
| Range of Rated load |
≤10VA |
| Rated frequency |
50/60Hz |
| Rated secondary current |
5A or 1A |
| Rated short-time thermal current |
40kA, 1S |
| Rated continuous thermal current |
150%I1n |
| Secondary winding power frequency withstand voltage |
3kV, 1min |
| Safety Factor Rating |
(FS) <10 |
| Output signal |
1A, 5A, 333mV, 1V or 5V(customized) |
| Cable length |
2.5m, 5m, 10m(customized) |
| Flame retardant ABS plastic shell inside, jaw waterproof apron. |
| Mechanical parameters |
| Aperture (mm) |
Φ55 |
| Dimensions (W×D×H) (mm) |
180×138×52 |
| Weight (kg) |
2 |
| Working conditions |
| Operating temperature |
-35°C to +65°C, not exceeding +40°C |
| Storage temperature |
-40°C to +70°C |
| Ingress Protection |
IP65 |
| Environment |
outdoors or indoors |
| The Height of above sea level |
0- 3000m |
| Conditions |
No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
