P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

China P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier
P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC supplier

Large Image :  P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: EN 61010-1, EN 61010-2-032, IEC60044-1
Model Number: P50

Payment & Shipping Terms:

Minimum Order Quantity: 3 pieces
Price: USD 80/ piece
Packaging Details: standard export carton
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Contact Now
Detailed Product Description
Standards: EN 61010-1, EN 61010-2-032, IEC60044-1 Ratio: 1000: 1 Or 2000:1 (customized)
Accuracy Class: 0.1%, 0.2%, 0.5% Primary Current: 0 - 1000A AC
Secondary Output: 1mV/A AC, 5mV/A Or (customized) Max. Cont. Input Current: 1200A
Over Voltage Category: CAT III 600V Output Signal: 333mV, 500mV,1V,2V,5V AC At Nominal Input Current
0-10A: ≤0.5% 10-100A: ≤0.2%
10-1200A: ≤0.1% Frequency Range: 40Hz-2000Hz
Max. Voltage Not Insulated Conductors: 600 V

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC



The round jaw design on the P50 Series AC current probes along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A.
The P50 is a general purpose 1000A AC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P50 has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.



Applications
1. Power quality measuring
2. Large industrial loads
3. Measuring around cable bundles
4. Power load monitoring
5. Waveform analysis
6. Energy meter calibrator
Features
1. Measurement range of 1mA to 1200A AC
2. Large jaw opening accommodates conductors up to two 500kcmil
3. Improved ergonomic design and easy operation
4. High content nickel metal core
5. Conforms to EN 61010, 600V CAT III
6. Low phase shift for power measurement
7. Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
8. UL, CE mark

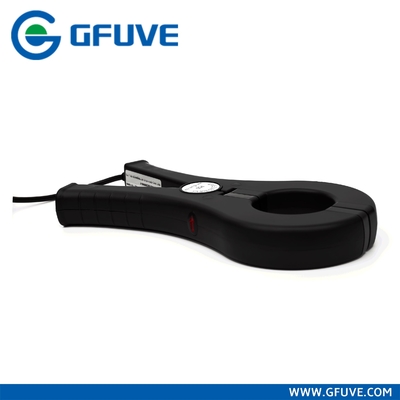

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A ACP50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

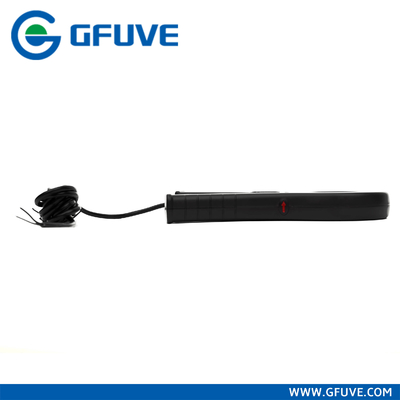

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

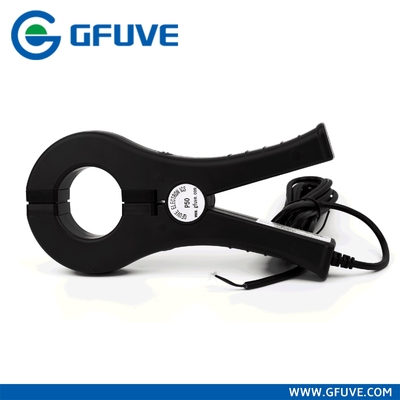

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

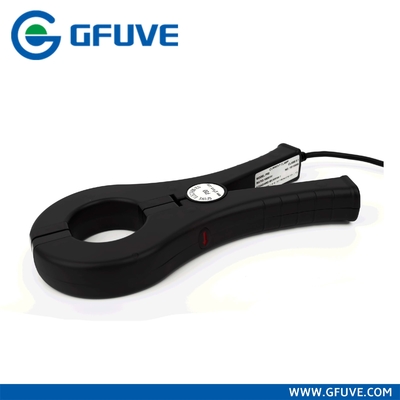

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

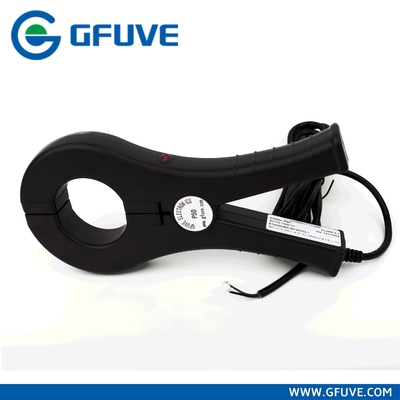

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC

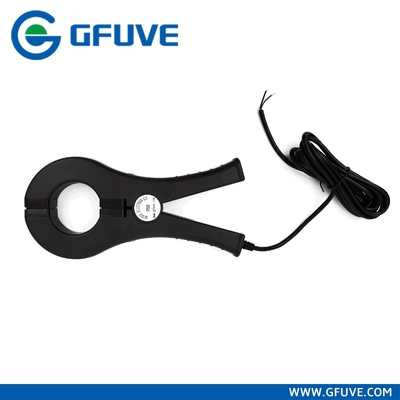

P50 Selected AC Current Measurement Large Jaw Opening Low phase shift Clamp-on Probe 1mA to 1200A AC
