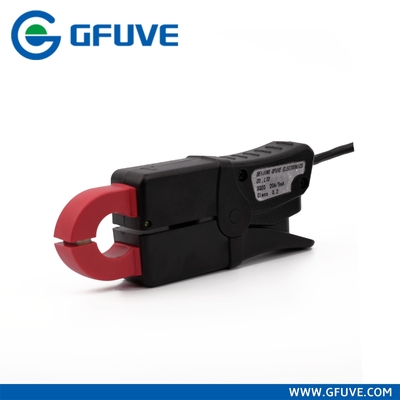

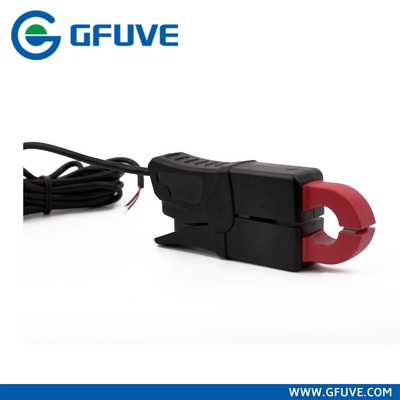

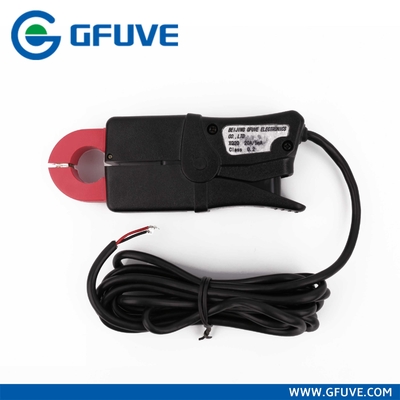

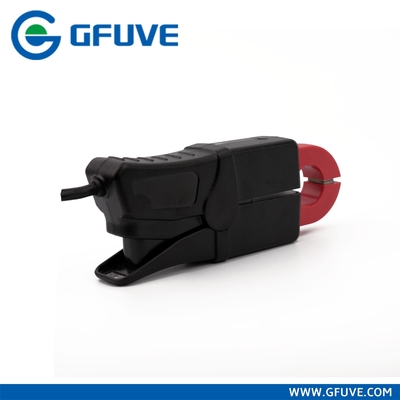

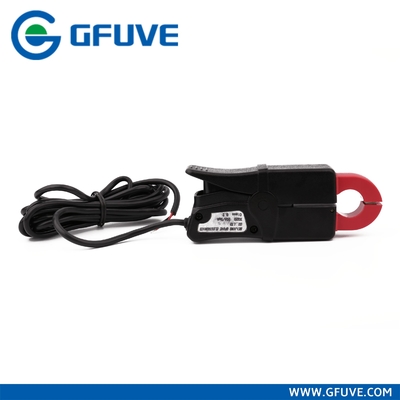

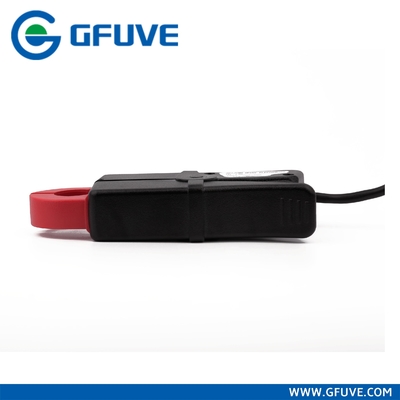

XQ20 High Precision Standard Mini Clamp-on Current Sensor Ct
The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.
Applications 1. Electric energy meter calibrator (on site) 2. Double clamp type ground resistance tester 3. Double clamp type phase volt-ampere meter 4. Digital multi-meter 5. Multi-function energy meter 6. Oscilloscope 7. Power quality analyzer 8. Matched instruments 9. Calibration instrument on site
Features 1. Measurement range of 1mA to 200A AC 2. Small, compact size 3. Improved ergonomic design and easy operation 4. Low phase shift for power measurement 5. With load capacity ≤4Ω 6. Output model: Lead output(2.5m)
Parameters
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2% |
| Primary current |
0 - 200A AC |
| Secondary current |
0 - 200mA AC (customized) |
| Max. Cont. Input current |
240A |
| Load capacity |
≤4Ω |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) |
From 0 to 2V AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
52.5 x 137.5 x 28 |
| Weight (g) |
400 |
| Holding wire diameter (mm) |
φ20 |
| Max. jaw opening (mm) |
20 |
| Jaw color |
Red, yellow, blue, green, black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
Download Catalogue
XQ20-High precision 200A AC mini clamp on split core current sensor(929KB)
