GF106T class 0.05 1000A 2500V Full-automatic portable ct current transformer tester
-
-
Large Image :
GF106T class 0.05 1000A 2500V Full-automatic portable ct current transformer tester
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
GF106T |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
10000USD |
| Packaging Details: |
STANDARD EXPORT WOODEN BOX |
| Delivery Time: |
7DAYS |
| Payment Terms: |
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
|
Detailed Product Description
| CLASS: |
0.05 |
CT RATIO: |
0-10000 |
| PT RATIO: |
0-10000 |
Phase Error: |
3min |
| Ratio: |
0.5% |
Type: |
Ct Current Transformer Tester |
| Weight: |
23KG |
Ct Error Test: |
Automatic |
| Cable Length: |
4m (1000A Cable) |
GF106T class 0.05 1000A 2500V Full-automatic portable ct current transformer tester

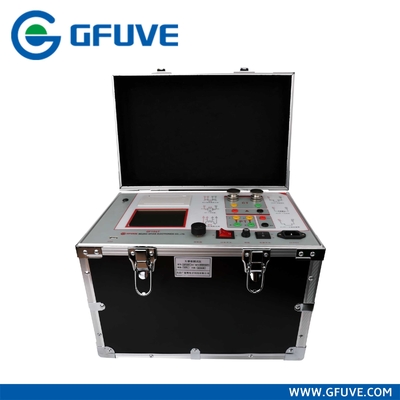

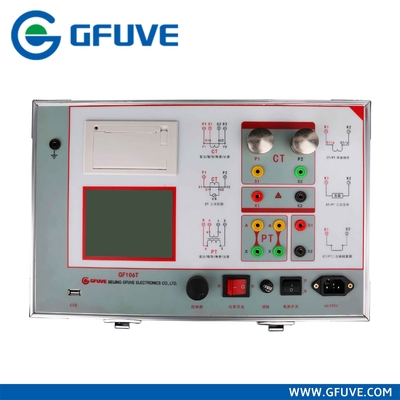

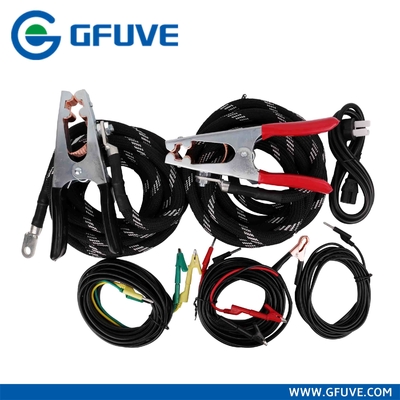

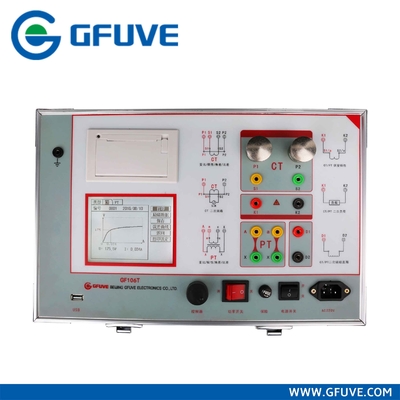

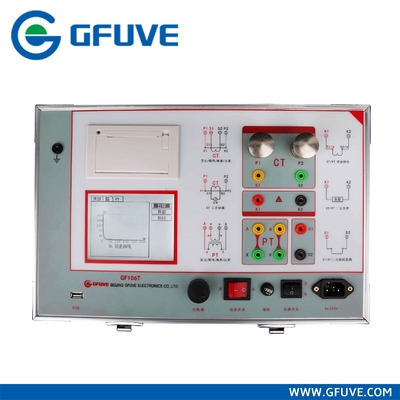

GF106T current transformer tester is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopting LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.
MAIN FUNCTIONS
| I. Current Transformer (CT) |
II. Voltage Transformer (PT) |
| 1. Magnetization curve |
1. Excitation characteristic test |
| 2. Transformation ratio test |
2. Transformation ratio test |
| 3. Polarity |
3. Polarity |
| 4. 5% and 10% error curve |
4. Withstand test of power frequency alternating current |
| 5. Current Injecting |
5. Degauss |
| 6. Degauss |
6. Calculation of knee point value |
| 7. Withstand test of power frequency alternating current |
7. Actual secondary load test |
8. Automatic calculation of excitation knee
point value |
8. Resistance test |
| 9. Actual secondary load test |
| 10. Resistance test |
PARAMETERS
| Electrical parameters |
| Accuracy |
0.2%, 0.5% |
| Power supply |
AC 220V±10% or AC 110V±10%, 50/60Hz |
| Excitation voltage output |
0-2500Vrms, |
| Excitation current output |
0-5Arms (20A peak-value) |
| Large current output |
0-1000A |
| Electrical parameters - continued |
| Accuracy |
≤0.5% (0.2%RD+0.3%RG) |
| Secondary winding DC resistance measurement |
Range |
0.1-300Ω |
| Accuracy |
≤0.5% (0.2%RD+0.3%RG) |
| Secondary actual load measurement |
Range |
5VA-1000VA |
| Accuracy |
≤0.5% (0.2%RD+0.3%RG)±0.1VA |
| CT/PT phase error measurement |
Accuracy |
±4min |
| Resolution |
0.01min |
| CT ratio error measurement |
Range |
≤25000A/5A(5000A/1A) |
| Accuracy |
≤0.5% |
| PT ratio error measurement |
Range |
1-500KV |
| Accuracy |
≤0.5% |
| Standards |
| Reference standards |
GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012 |
| Safety standards |
GB 4793.1-2007 |
| EMC |
EMC standard 89/336/EEC |
| FCC Subpart B of Part 15 Class A |
| IEC 1000-4-2 /3 /4 /6 |
| Mechanical parameters |
| Overall dimension (L x W x H) (mm) |
400 x 250 x 250 |
| Weight (kg) |
≤22 |
| Environmental conditions |
| Relative humidity |
90RH% |
| Operating temperature |
-10°C to +40°C |
| Altitude |
≤1000m |
