HIGH SENSITIVITY PERMALLOY CORE BLACK COLOR CLASS 0.1 AC 5A CURRENT CLAMP FOR POWER QUALITY ANALYZER
Detailed Product Description
Measuring Range: |
0-10A |
Accuracy Class: |
0.1% |
Ratio: |
1000:1 |
Operating Temperature: |
-20~+70°C |
Dimensions: |
45mmx158mmx25mm |
Weight: |
300g |
Jaw: |
8mm |
Q8A2: |
5a Current Clamp |
Color: |
Black |
Phase Error: |
10' |

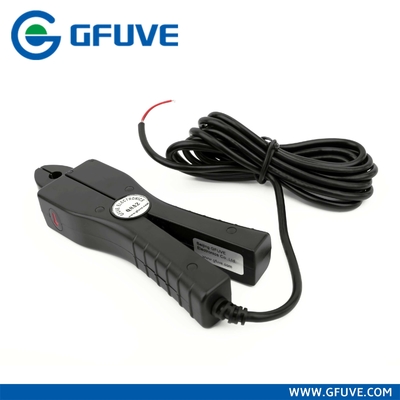

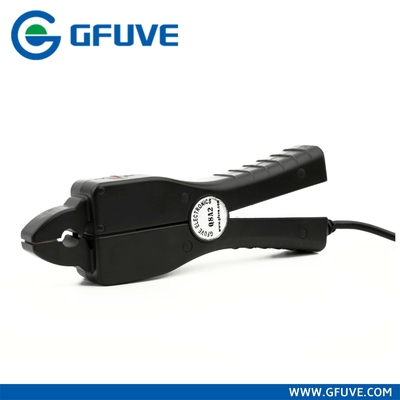

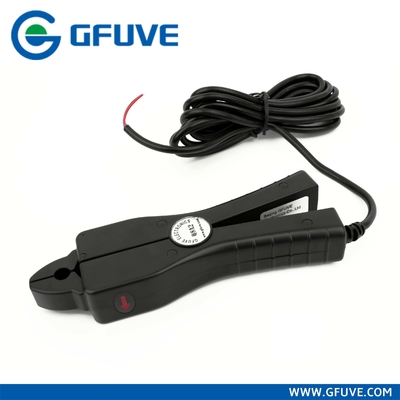

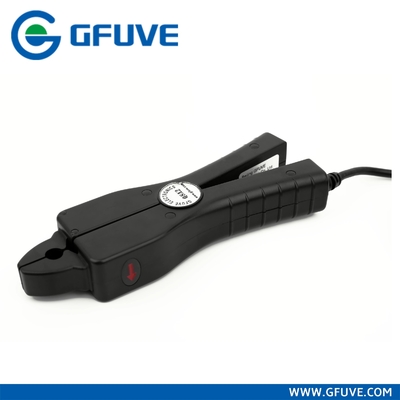

Q8A2 HIGH SENSITIVITY PERMALLOY CORE BLACK COLOR CLASS 0.1 AC 5A CURRENT CLAMP FOR POWER QUALITY ANALYZER
The model Q8A2 permalloy core AC 5A current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power quality analyzers, safety testers etc.
FEATURES
- Suitable for 5A, 10A cable online measurement
- Holding wire diameter: φ8mm
- Dimension: 45mm×158mm×25mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
- Low phase shift
- Class 0.1
- Permalloy core split core ct
PARAMETERS
Electrical parameters |
Ratio |
1000: 1 or 2000:1 (customized) |
Accuracy |
0.1 %,0.2% |
Primary current |
0 - 10A AC |
Secondary current |
0 - 10mA AC (customized) |
Max. Cont. Input current |
12 A |
Over voltage category |
CAT III 600V |
Output signal |
10mA AC at nominal input current |
Frequency range |
40Hz-2000Hz |
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
Temperature range |
-20°C to +55°C |
Output |
2.5 meter cable with D01 connector |
Max. voltage not insulated conductors |
600 V |
Standard |
EN 61010-1, EN 61010-2-032 |
Installation |
clamp type |
Output mode |
lead output(2.5m) |
Mechanical parameters |
Dimensions (L x W x H) (mm) |
45x158x25 |
Weight (g) |
250 |
Holding wire diameter (mm) |
φ8 |
Max. jaw opening (mm) |
8 |
