120A 576V PORTABLE THREE PHASE METER TEST SET FOR SITE TESTING CLASS 0.05
-
-
Large Image :
120A 576V PORTABLE THREE PHASE METER TEST SET FOR SITE TESTING CLASS 0.05
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
GF312V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
9800USD |
| Packaging Details: |
STANDARD EXPORT BOX |
| Delivery Time: |
7DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
200SETS/MONTH |
|
Detailed Product Description
| Class: |
0.05 |
Current Range: |
0-120A |
| Voltage Range: |
0-576V |
Frequency: |
40-70Hz |
| Phase: |
0-360.000 |
Harmonics: |
2-51th |
| Type: |
Portable Three Phase Meter Test Set |
Weight: |
2KG |
| LCD: |
7' Inch Touch Color TFT |
Box Weight: |
10KG |
| Pulse Sampler: |
Testing All The Meter |

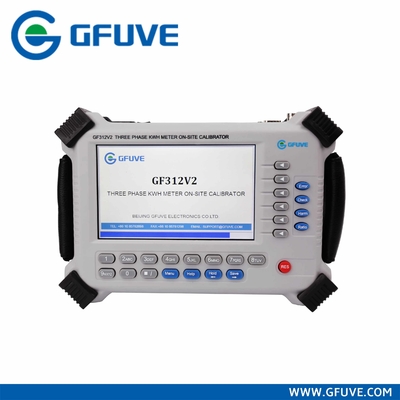

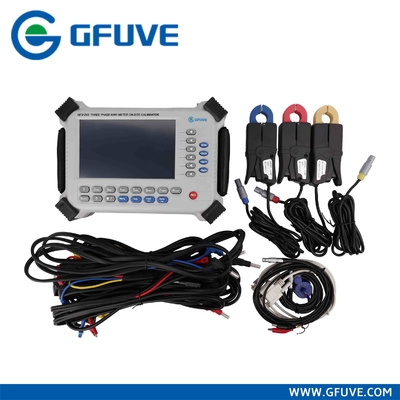

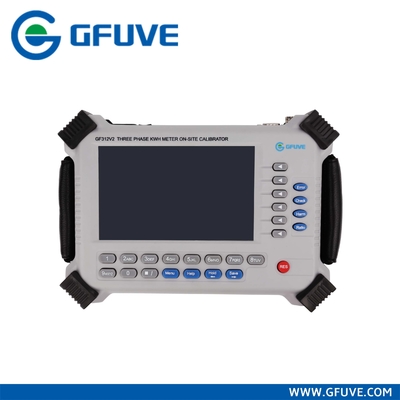

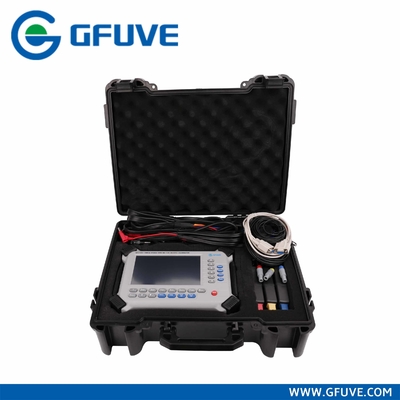

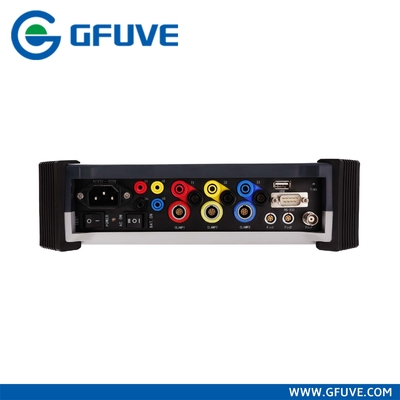

GF312V2 120A 576V PORTABLE THREE PHASE METER TEST SET FOR SITE TESTING CLASS 0.05
GF312V2 portable three phase multifunction electric meter tester is with comfort design, small size, and light weight. It is suit for electric power departments, measuring and quality examining departments and electric lab to field use.
FEATURES
- High accuracy 0.05%
- Screen capture function
- Input two pulse signal for master and slave meter synchronously calibration
- Large size display screen, direct viewing and convenient
- Internal communication port for PC control
- Multiple power supply for different testing occasion
- Large capacity storage device for mass memory
PARAMETERS
| Electrical parameters |
|---|
| Accuracy class | 0.05%, 0.1% |
| Power Supply | External power, 220V/110V, 50/60Hz
Phase voltage supply 45-450V, 50/60Hz
Li-Battery supply |
| Voltage measurement |
|---|
| Range | 30-560V |
| Error | ±0.05% |
| Harmonic | 2nd-51st |
| Current measurement |
|---|
| Range (direct connection) | 0.01-10A |

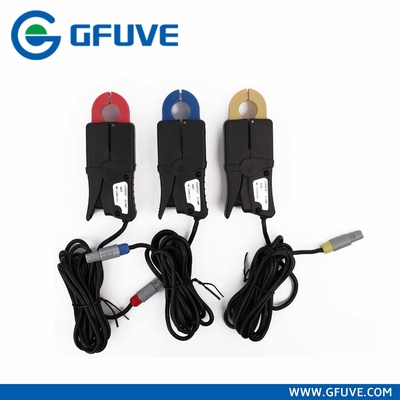

| Range (clamp CT) | 5A,100A,500A,1000A,2000A (option) |
| Error (direct connection) | ±0.05% |
| Error (clamp CT) | ±0.2% (5A, 100A )
±0.5% (other) |
| Harmonic | 2nd-51st |
| Power measure error |
|---|
| Active power (direct connection) | ±0.05% |
| Active power (clamp CT) | ±0.2% (5A, 100A)
±0.5% (other) |
| Reactive power (direct connection) | ±0.1% |
| Reactive power (clamp CT) | ±0.2% (5A, 100A)
±0.5% (other) |
| Energy measure error |
|---|
| Active energy (direct connection) | ±0.05% |
| Active energy (clamp CT) | ±0.2% (5A, 100A)
±0.5% (other) |
| Reactive energy (direct connection) | ±0.1% |
| Reactive energy (clamp CT) | ±0.2% (5A, 100A)
±0.5% (other) |
| Phase angle |
|---|
| Range | 0°-360° |
| Resolution | 0.01° |
| Error | ±0.05° |
| Frequency |
|---|
| Range | 45Hz-65Hz |
| Resolution | 0.001Hz |
| Error | 0.002Hz |
| Pulse output |
|---|
| Energy constant | 25000 |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Pulse input |
|---|
| Input channel | 2 |
| Input level | 5-10V |
| Input frequency | Max. 100Hz |
| Display |
|---|
| Resolution | 7” TFT color (480×234) |
| Function |
|---|
| Vector diagram | Yes |
| Waveform | Yes |
| Energy accumulation | Yes |
| CT ratio test | Yes |
| Local parameter input | Yes |
| Wiring emulation | Yes |
| Self-calibration | Yes |
| Recorder check | Yes |
| Data storage | Yes |
| Data storage qty | 5000 |
| External extend memory | Yes |
| Screen printing | Yes |
| Communication port | USB/RS232 |
| Communication with PC | Yes |
| Upload data | Yes |
| External mini printer | Yes |
| External keyboard | Yes |
| Mechanical parameters |
|---|
| Dimensions (W×H×D) (mm) | 245×168×70 |
| Weight (kg) | 1.8 |
| Environmental conditions |
|---|
| Ambient temperature | -25°C to +45°C |
| Relative humidity | 30%-95% |
