CLASS: | 0.1 | RATIO: | 1000:1 |
---|---|---|---|
COLOR: | GREY | PRIMARY CURRENT: | 0-120A |
SECONDARY SIGNAL: | 0-120mA | PHASE SHIFT: | 0.1% |

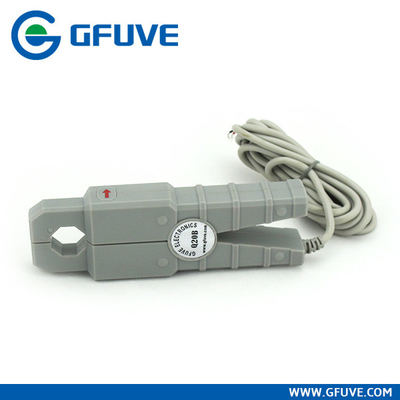

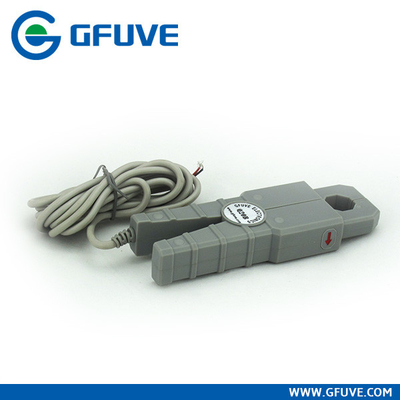

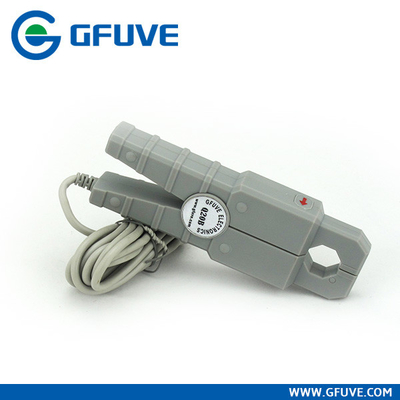

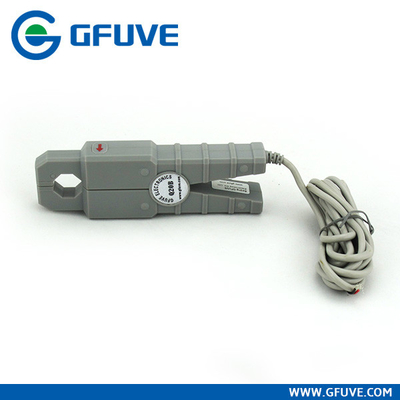

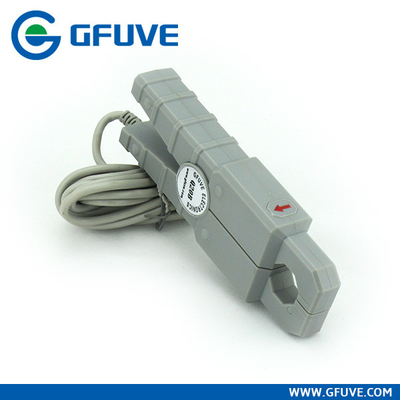

The model Q20B openable jaw AC current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Electrical parameters | |
---|---|
Ratio | 1000: 1 or 2000:1 (customized) |
Accuracy class | 0.1%, 0.2%, 0.5% |
Primary current | 0 - 200A AC |
Secondary current | 0 - 200mA AC or 0 - 200mV AC(customized) |
Max. Cont. Input current | 240A |
Over voltage category | CAT III 600V |
Output signal (AC current) | From 0 to 200mA AC at nominal input current |
Output signal (AC voltage) | From 0 to 200mV AC at nominal input current |
Frequency range | 40Hz-2000Hz |
Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
Temperature range | -20°C to +55°C |
Output | 2.5 meter cable with D01 connector |
Max. voltage not insulated conductors | 600 V |
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation | Clamp type |
Output mode | Lead output(2.5m) |
Mechanical parameters | |
Dimensions (L x W x H) (mm) | 56 x 168 x 27 |
Weight (g) | 350 |
Holding wire diameter (mm) | φ20 |
Max. jaw opening (mm) | 20 |
Color | Gray |
Material | PC+ABS+Polycarbonate, UL94 V0 |
