MV OUTPUT HIGH-VALUE VOLTAGE OUTPUT AC CURRENT CLAMP SENSOR
-
-
Large Image :

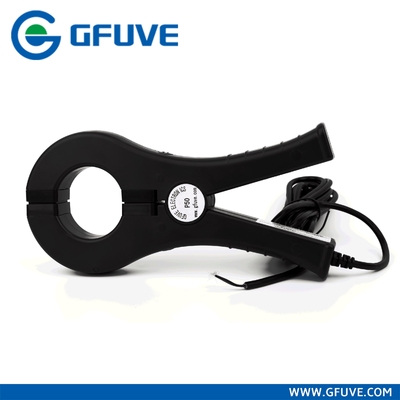

MV OUTPUT HIGH-VALUE VOLTAGE OUTPUT AC CURRENT CLAMP SENSOR
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
HQ15 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD1---350 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
10000pcs/month |
|
Detailed Product Description
| Measuring Range: |
0-130A |
Accuracy Class: |
0.1% |
| Supply Voltage: |
NO |
Operating Temperature: |
-20~+70°C |
| Display Type: |
Analog Only |
TYPES: |
Current Sensor |
| Ratio: |
1000:1 |
Usage: |
Power Quality Analyzer |
| Jaw: |
8mm, 13mm, 20mm, 50mm, 110mm |

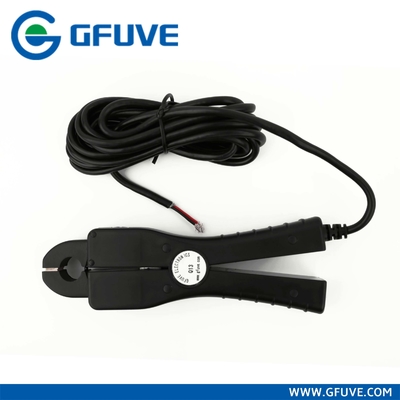

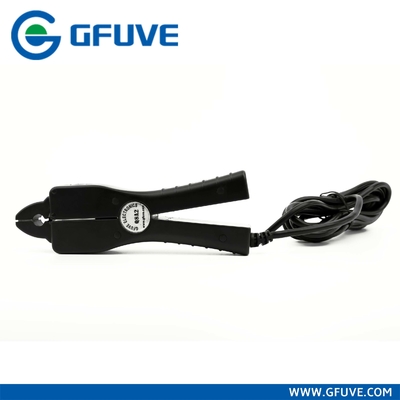

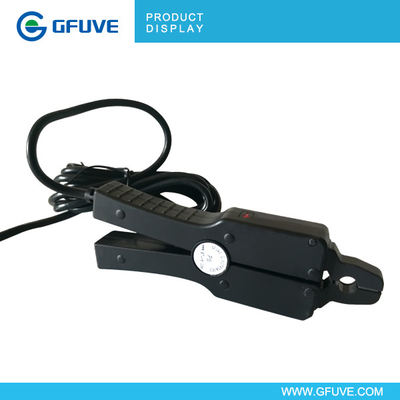

HQ15 MV OUTPUT HIGH-VALUE VOLTAGE OUTPUT AC CURRENT CLAMP SENSOR
The HQ15 AC Current Probe is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class.
APPLICATIONS
- Power quality monitoring
- CT secondary current detection
- Smart logger
- Distributed measurement systems
FEATURES
- Flexible and light weights, exquisite appearance
- Easy &quick installation in tight spaces
- Excellent linearity
- Maximum measuring current up to 130A
PARAMETERS
| Electrical parameters |
| Model |
HQ15-A5 |
HQ15-A100 |
| Rated primary current |
5A AC |
100A AC |
| Output Voltage |
10 mV AC/A |
1mV AC/A |
| Maximum input current |
50A AC (Continuous) |
130A AC (Continuous) |
| (45-66Hz,Ambient temp.50°C) |
| Amplitude accuracy |
±0.3%RD±0.02%FS (10%-100%I1n), 45Hz- 66Hz) |
| The amplitude frequency characteristic |
±0.1% (45Hz-5kHZ)( Deviation accuracy) |
| Conductor impact |
±0.5 (Off-center) |
| The influence of external lectromagnetic fields |
≤0.1A (In AC 400A / m electromagnetic fields) |
| Temperature coefficient |
±0.02%/°C of the reading data |
| Dielectric strength |
3000 V AC rms/Continue 15 seconds(Circuits-iron core, iron core-shell) |
| The maximum rated voltage |
300V AC rms |
| Applicable standards |
Safety: EN61010-2-032:2002,300V CAT III, Contamination II
EMC: EN61326:1997+A1:1998+A2:2001+A3:2003(Class A) |
| Mechanical parameters |
| Measurable conductor diameter |
Max.15mm |
| Cable length |
About 3m |
| Dimension (W x H x D) |
About 46×135×21 (Excluding protruding parts) |
| Weight |
About 230g |
| Environmental conditions |
| Operating temperature |
0 to 50°C (32-122°F) |
| Operating humidity |
≤80%RH(No condensate) |
| Storage temperature |
-10 to 60°C (14-140°F) |
| Storage humidity |
≤80%RH(No condensate) |
| Operating environment |
Indoor, altitude up to 2000 meters |
