BUSBAR CABLE 500A VOLTAGE OUTPUT AC CLAMP ON CURRENT PROBE
-
-
Large Image :
BUSBAR CABLE 500A VOLTAGE OUTPUT AC CLAMP ON CURRENT PROBE
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
HQ46 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD10---450 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7 days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
10000pcs/month |
|
Detailed Product Description
| Usage: |
Magnetic Sensor |
Theory: |
Current Sensor |
| Output: |
Analog Sensor |

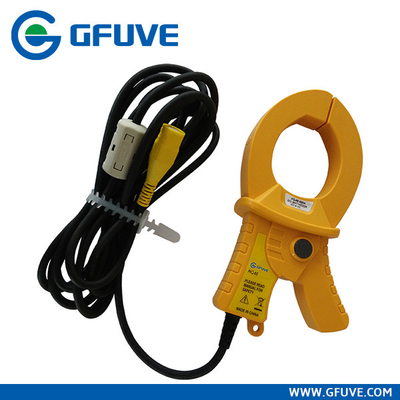

HQ46 BUSBAR CABLE 500A VOLTAGE OUTPUT AC CLAMP ON CURRENT PROBE
The HQ46 AC Current Probe is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 600V CAT III safety class.
APPLICATIONS
-
Power quality monitoring
-
Smart logger
-
Distributed measurement systems
-
Energy meter calibration
FEATURES
-
Flexible and light weights, exquisite appearance
-
Easy &quick installation in tight spaces
-
Excellent linearity
-
Maximum measuring current up to 550A
PARAMETERS
|
Electrical parameters |
|
Rated primary current |
500A AC |
|
Output voltage |
1 mV AC/A |
|
Amplitude accuracy |
±0.3%RD±0.02%FS (10%~100%I1n), 45Hz- 66Hz|Wire centered |
|
Phase accuracyt |
±0.5°(10%~100%I1n) (45Hz-5kHZ) |
|
The amplitude frequency characteristic |
±1% (45Hz-5kHZ) (Deviation accuracy) |
|
Conductor impact |
±0.5% (Off-center) |
|
The influence of external lector magnetic fields |
≤0.1A (In AC 400A/m electromagnetic fields) |
|
Maximum input current |
550A AC (Continuous)
(45-66Hz, Ambient temperature 50°C) |
|
Temperature coefficient |
±0.02%/°C of the reading data |
|
Dielectric strength |
5500 V AC rms/Continue 15 seconds (Circuits-iron core, iron core-shell) |
|
The maximum rated voltage |
600V AC rms |
|
Applicable standards |
Safety: EN61010-2-032:2002,300V CAT III, Contamination II
EMC: EN61326:1997+A1:1998+A2:2001+A3:2003(Class A) |
|
Mechanical parameters |
|
Measurable conductor diameter |
Max.46mm |
|
Cable length |
About 3 m |
|
Dimension (W x H x E) |
About 96×160×40 (Excluding protruding parts) |
|
Weight |
About 395g |
|
Environmental conditions |
|
Operating temperature |
0 to 50°C (32-122°F) |
|
Operating humidity |
≤80%RH(No condensate) |
|
Storage temperature |
-10 to 60°C (14-140°F) |
|
Storage humidity |
≤80%RH(No condensate) |
|
Operating environment |
Indoor, altitude up to 2000 meters |
